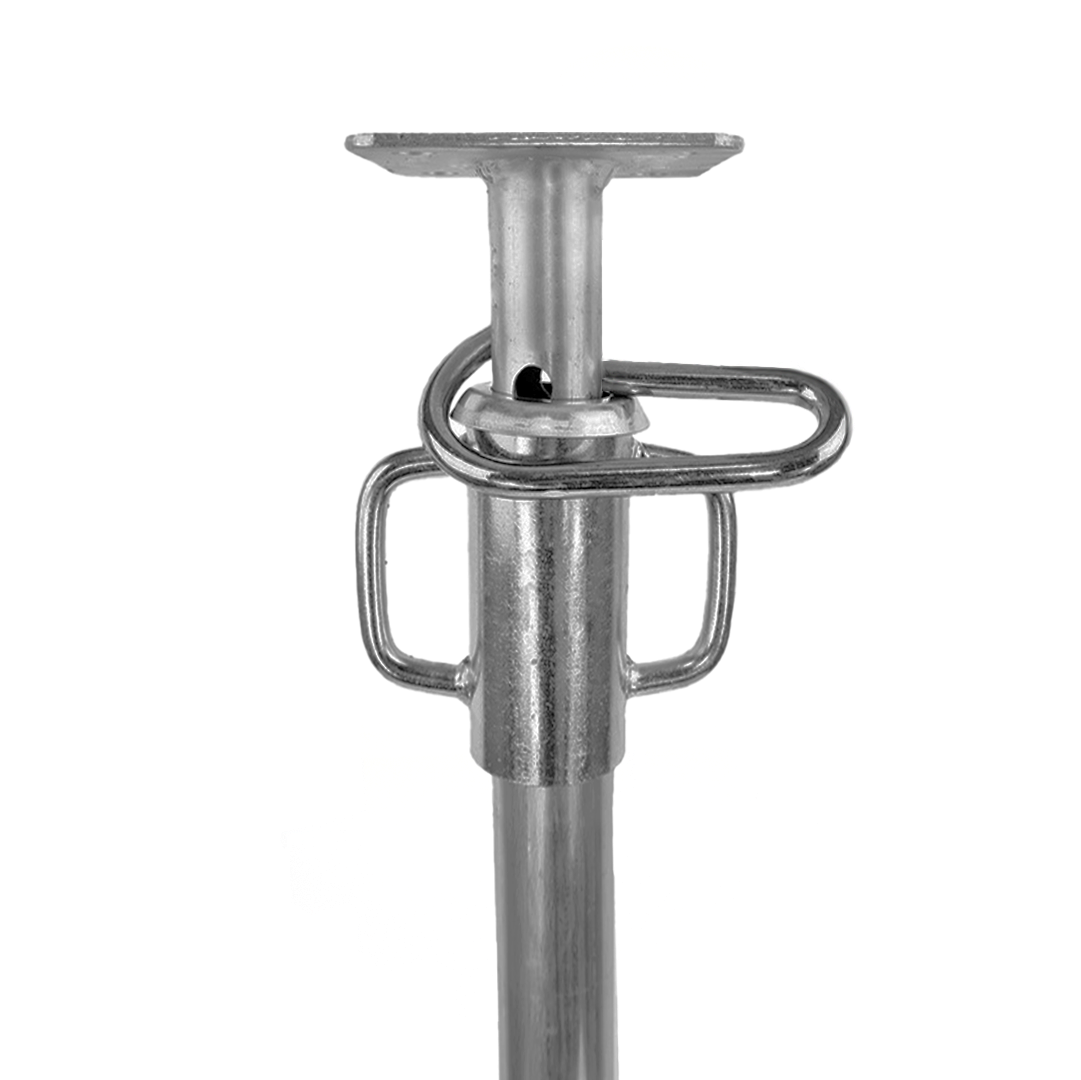

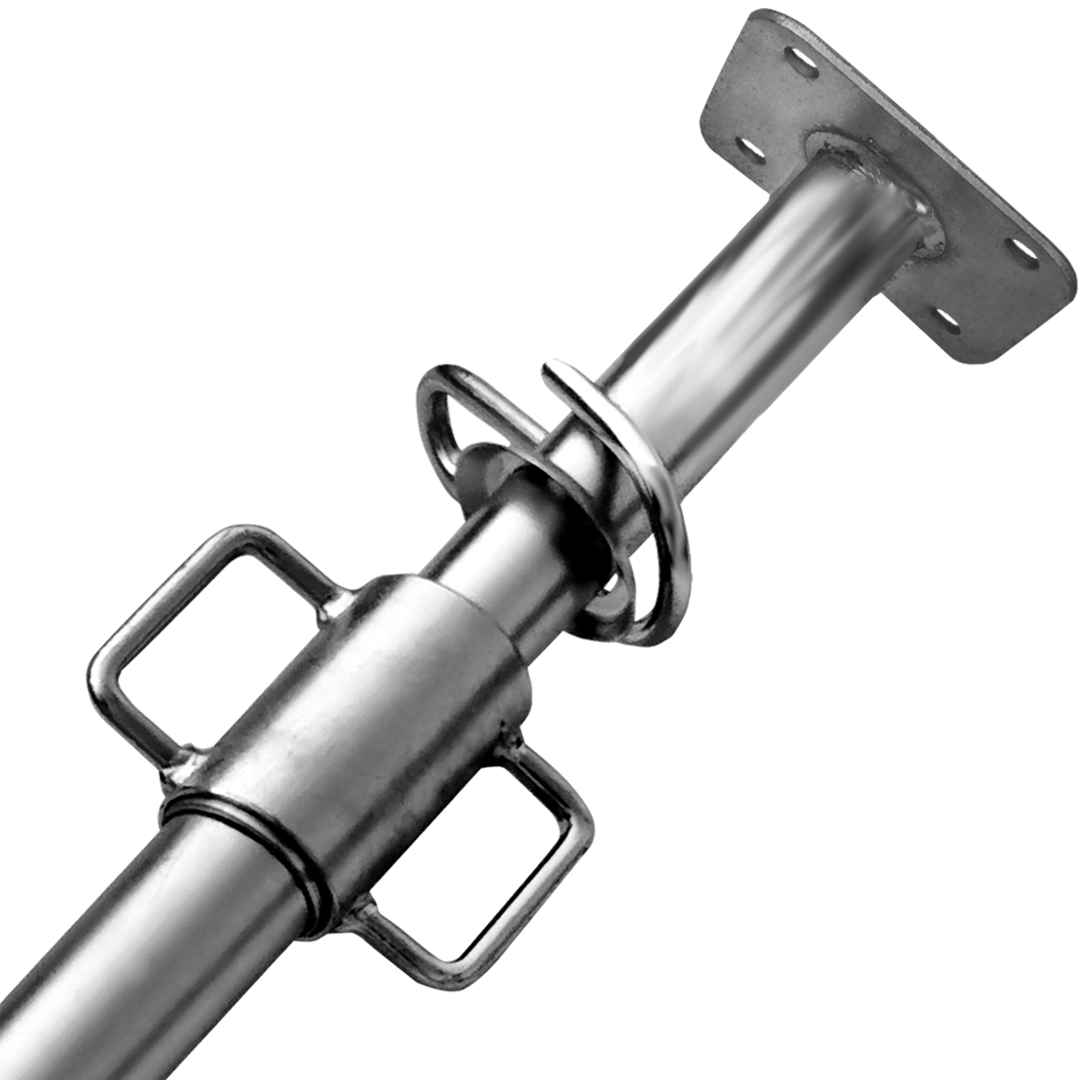

Spanish type formwork prop

Serwis Budowy

TECHNICAL DATA:

Load bearing capacity: 8-10 kN
Material: galvanised steel
Internal adjusting thread
Safety holes every 12.5 cm
Base thickness: 4 mm
Holes in the bases allowing the supports to be bolted together
Outer diameter: 48 mm / wall thickness: 1.6 mm
Inner diameter: 40 mm/wall thickness: 1.6 mm

Go to full description

€14.82

Shipping costs are not included in the price.

Have a question about the product? Write to us at shop@serwisbudowy.eu

Wybierz wariant produktu:

Individual variants may differ in price

Options

0,60-1,10m

Unavailable

0,80-1,40m

Unavailable

1,00-1,80m

Unavailable

1,60-2,90m

Unavailable

1,80-3,20m

Unavailable

2,00-3,60m

2,20-4,00m

Quantity

pcs

Availability:

Almost Gone

Description

CEILING SUPPORT SPANISH TYPE

The building support is used to support H20 girders. The pylons can be used for formwork. They are also suitable for supporting lintels or balconies. The strength of the entire formwork system depends on the support.

The steel makes the supports durable and gives you solid support. The internal adjustment thread allows you to set the seatpost in millimetre increments.

The supports were tested for strength at the Regional Construction Laboratory of the Department of Engineering Structures, Faculty of Civil and Environmental Engineering, Gdansk University of Technology.

The supports were made of pre-galvanised weather-resistant material.
