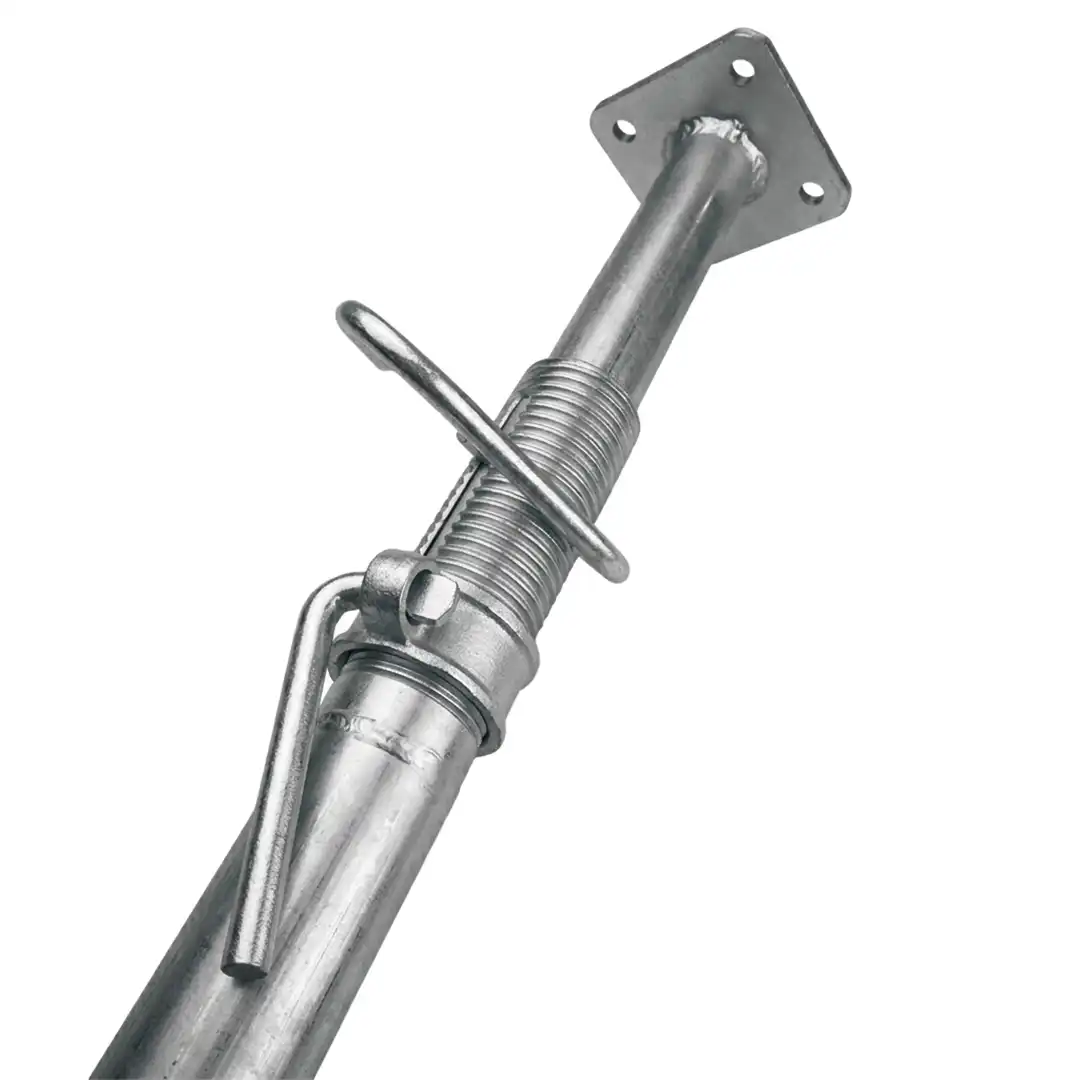

  • podpora 20-14kN N-8.png

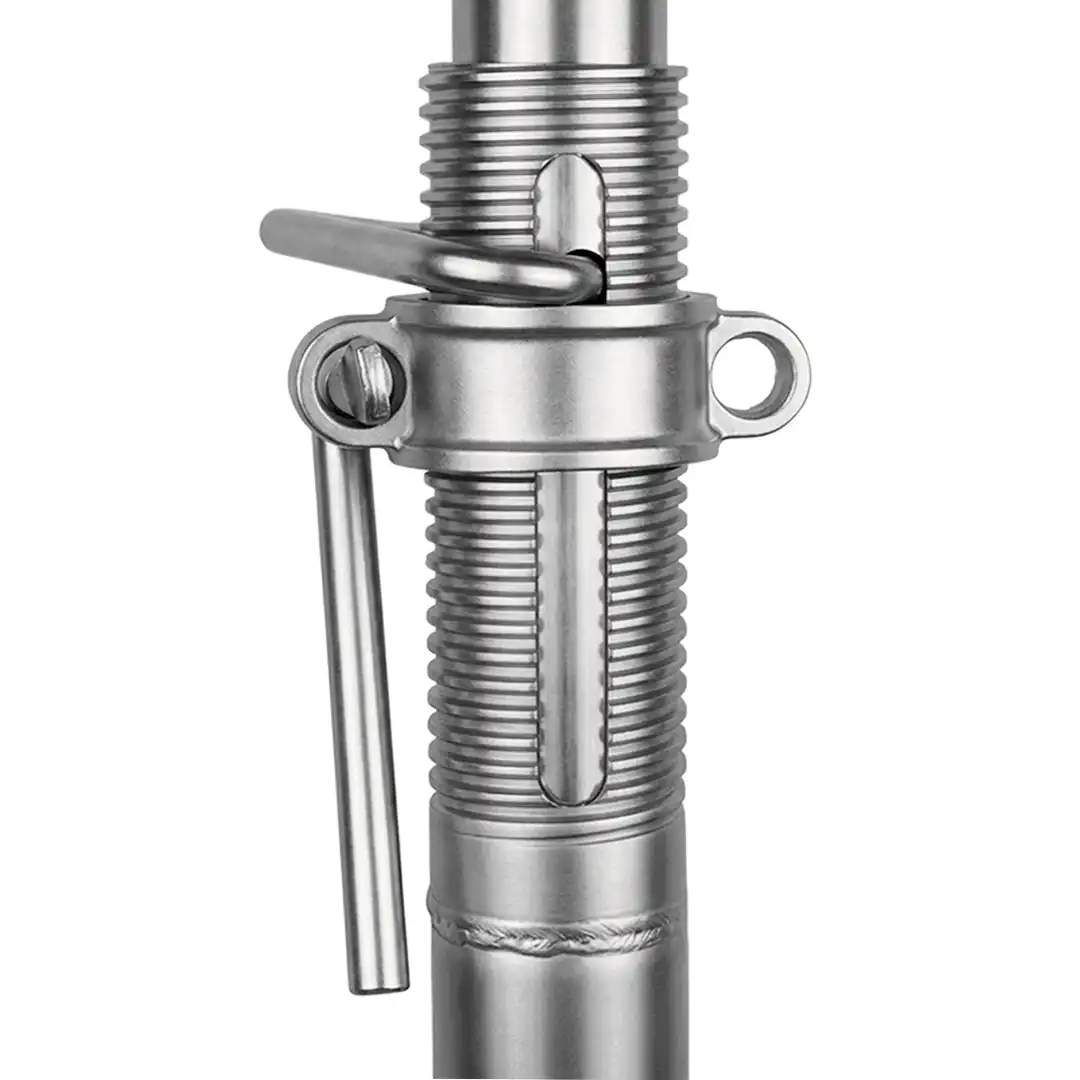

  • podpora 20-14kN N-13.png

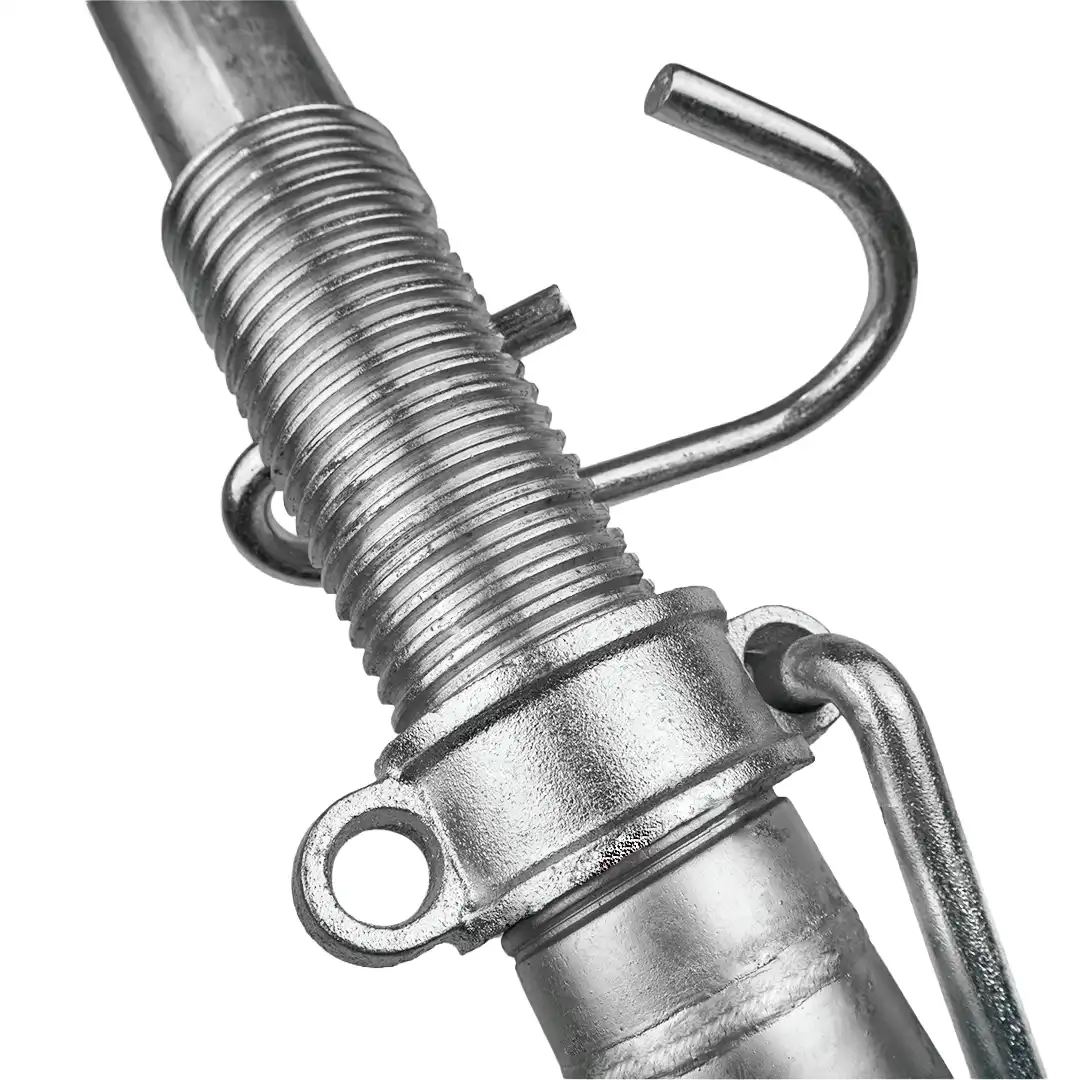

  • podpora 20-14kN N-12.png

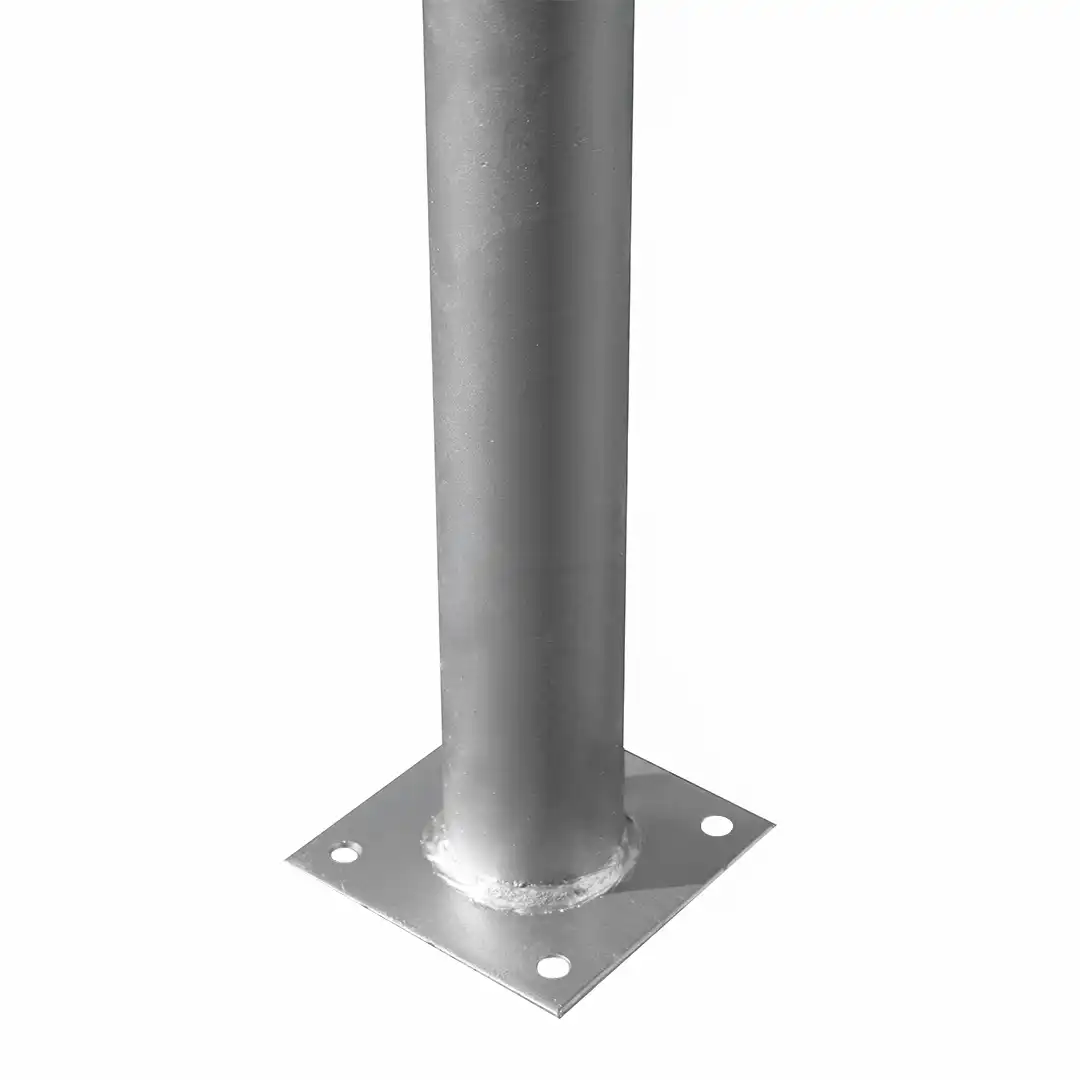

  • podpora 20-14kN N-5.png

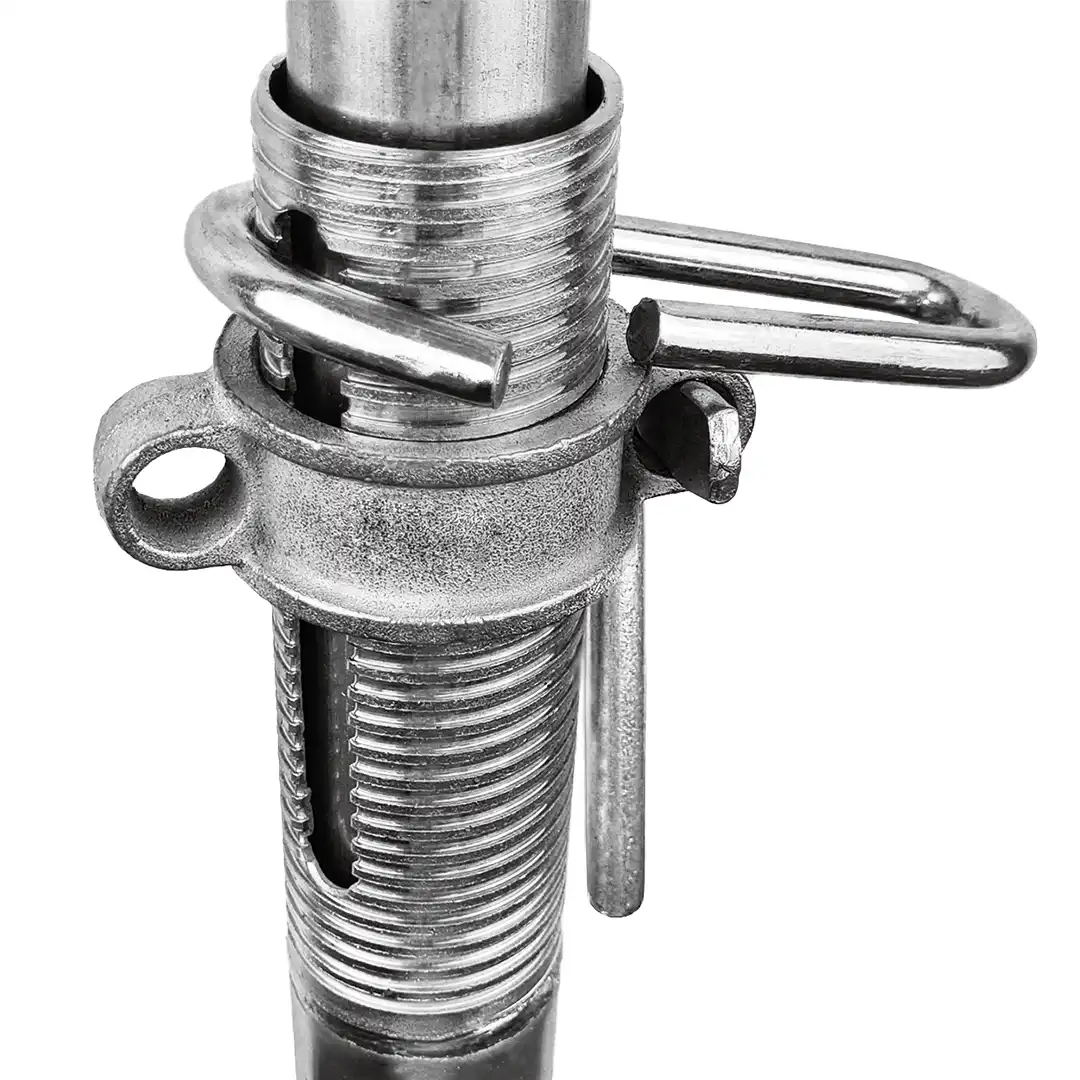

  • podpora 20-14kN N-15.png

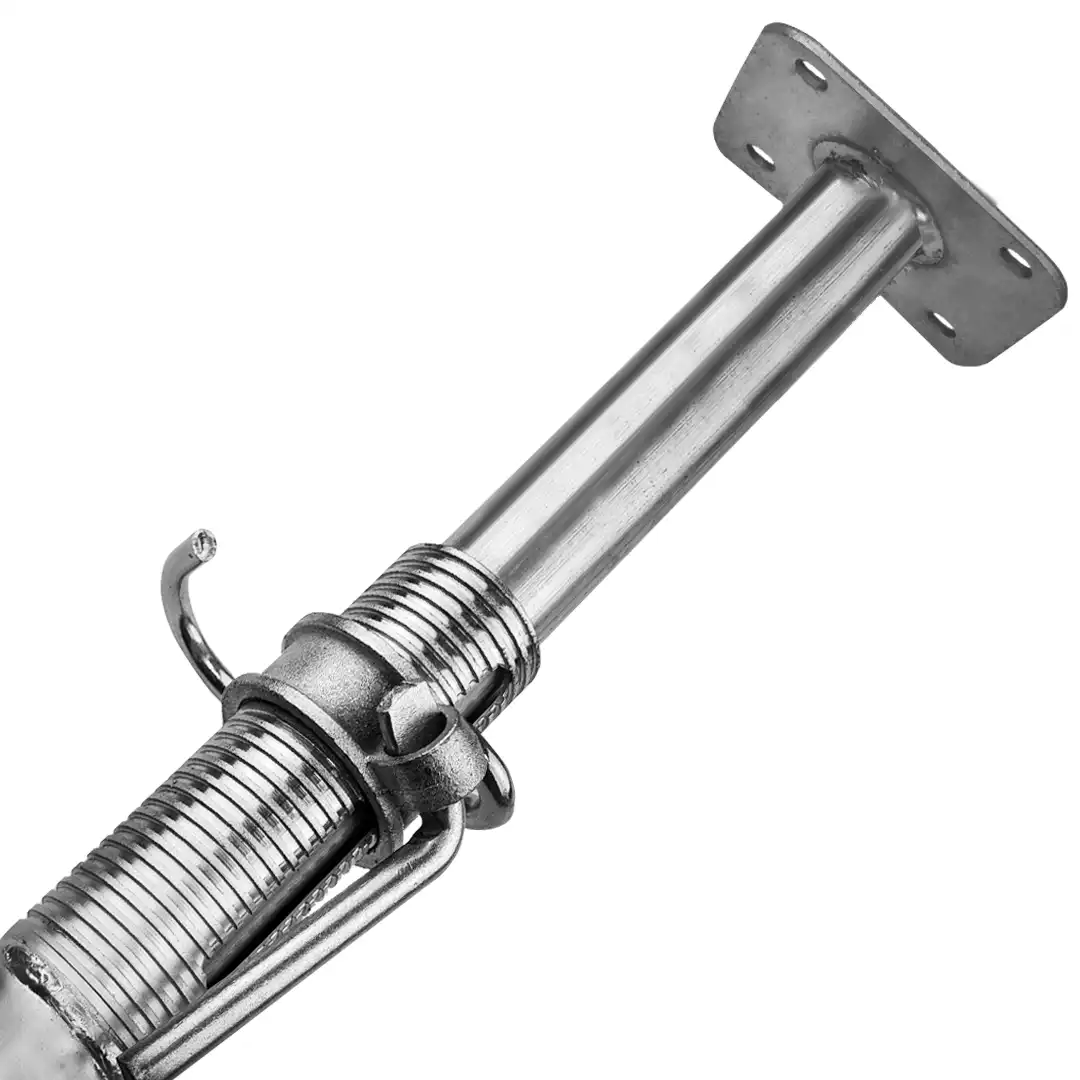

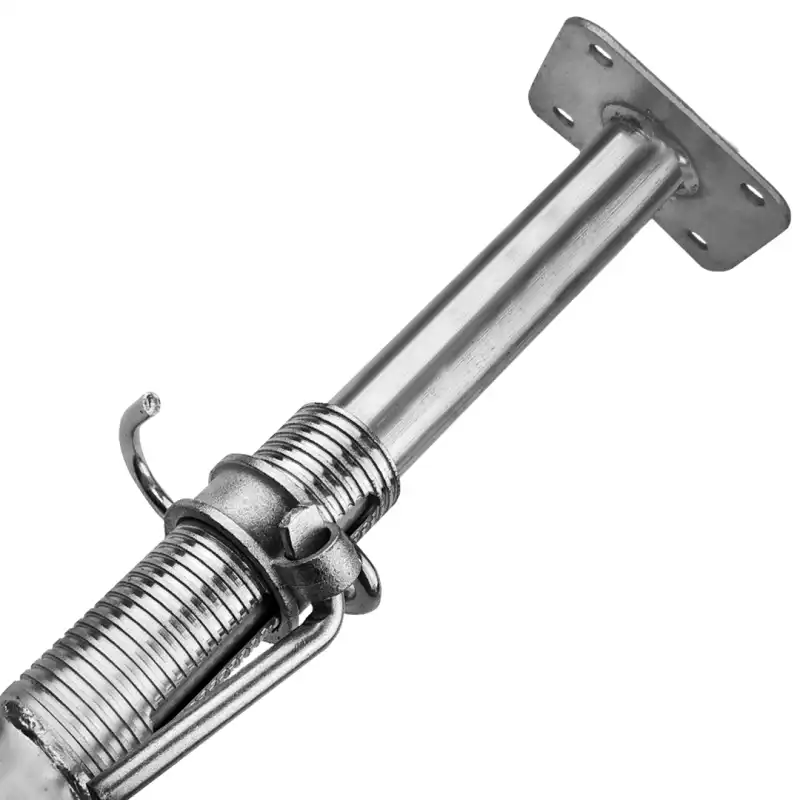

  • podpora 20-14kN N-17.png
Manufacturer: Serwis Budowy (go to products)

50 pieces Ceiling Support 20-14 kN

MŰSZAKI ADATOK:

  • Készlet: 50 darab
  • Teherbírás: 20 kN – 14 kN (a kinyúlás mértékétől függően)
  • Állítás tartomány: 1,60-3,60 m (a kiválasztott változattól függően!)
  • Anyag / Védelem: horganyzott acél (előhorganyzott)
  • Menet típusa: külső szabályozó menet
  • Külső csőátmérő: 60 mm
  • Külső csőfalvastagság:
    1,00-1,80 m, 1,80-3,20 m és 2,0-3,60 m hosszúságok esetén 1,8 mm;
    2,80-5,0 m hosszúságok esetén 2,2 mm
  • Belső csőátmérő: 48 mm
  • Belső csőfalvastagság:
    1,00-1,80 m, 1,80-3,20 m és 2,0-3,60 m hosszúságok esetén 1,8 mm;
    2,80-5,0 m hosszúság esetén ez 2,2 mm
  • Alapméret: 120 x 120 mm
  • Alapvastagság: 4 mm
  • Tűvastagság: 12 mm
  • Beállítófuratok távolsága: 12,5 cm-enként
  • Szabványok és megfelelőség: megfelel az Európai Unió (EU) előírásainak szabványok

Go to full description
Shipping from €0.00 - Individual offer for delivery (Poland)

Sent to the email address provided in the order details
with VAT without VAT
Price €889.16
incl. 23% VAT

Shipping costs are not included in the price.

Wybierz wariant produktu:

Individual variants may differ in price

Options

Unavailable
Unavailable
pcs
Availability:
Fully Stocked
Share

Description

Pack of 50 – GALVANIZED SLAB PROP (20–14 kN) – GERMAN TYPE

This set of 50 galvanized slab props (20–14 kN, German type) is a professional, wholesale package designed for construction companies, developers, and formwork equipment rental businesses.

Designed for the safe support of heavy vertical loads during the pouring of monolithic slabs, ribbed-slab systems, support beams, lintels, and girders.

Constructed from high-grade pre-galvanized steel with reinforced tube walls, these props offer complete resistance to corrosion, mechanical damage, and harsh weather conditions.

Key product advantages

  • Guaranteed load-bearing capacity of 20–14 kN: a high standard of strength ensuring stability and safety when formworking heavy reinforced concrete slabs.
  • Complete anti-corrosion protection: galvanized steel effectively shields the main tube, thread, and base plates from moisture, rain, and construction chemicals.
  • Precise height adjustment: external thread ...adjustment system, featuring holes spaced every 12.5 cm, allows for quick and millimetre-precise levelling of the formwork.
  • Reinforced construction: an outer tube with a diameter of 60 mm, a thick base plate (4 mm), and a G-PIN (12 mm) prevent deformation under operational loads.
  • Certified quality: the product has undergone laboratory testing at the Gdańsk University of Technology and meets EU standard requirements.

Applications

  • professional formwork for heavy reinforced concrete slabs (monolithic, ribbed, Teriva, Filigran).
  • supporting lintels, downstand beams, joists, and columns subject to heavy loads.
  • temporary securing and propping of structures during renovation or demolition work.
  • system formwork based on H20 timber beams and crossheads.

Assembly Method and Safety

  1. Base support: place the bottom foot of the prop on a firm, load-bearing surface. On unpaved ground, use base planks (sole plates).
  2. Vertical alignment: use formwork tripods at the edges and at intervals between the props to maintain the stability of the assembly while positioning the girders.
  3. Incremental adjustment: extend the inner tube to the required height and secure it by inserting the G-PIN into the nearest hole.
  4. Fine adjustment: use the nut on the external thread to tighten the prop, ensuring a perfect fit against the head or the H20 girder.
  5. Verification: before pouring concrete, check that the erected structure is level and plumb.

Frequently Asked Questions (FAQ)

1. Is the prop compatible with standard formwork accessories?

Yes, the design of the prop is fully universal—it is compatible with standard formwork heads (cross-heads), stabilizing tripods, and H20 formwork beams.

2. How should the prop's adjustment thread be maintained?

Thanks to its galvanized coating, the thread is highly resistant to corrosion. To ensure smooth adjustment over multiple uses, it is recommended simply to clean any dried concrete residue from the mechanism after work is completed.

Need a customised delivery quote? We provide full support
 Write now to shop@serwisbudowy.eu and receive a free quote for your transport
