Set of construction chutes, 9.5 m

A rubble chute kit is essential on every construction site. It ensures clean and safe removal of rubble.

The segmented design of the system reduces dust and prevents waste from escaping outside the designated area. It also eliminates the risk of waste accidentally hitting an employee or damaging property when dropped from a great height.

This is an excellent alternative to the standard method of throwing debris into buckets and loading it into special bags.

Hooper is used to create a sleeve, enabling vertical transport of waste from a great height. It is necessary to build a professional funnel system.

TECHNICAL DATA:

• Wall thickness: 4.2 mm

• Element height 106 cm

• Inlet: outer diameter 59 cm, inner diameter 50 cm

• Outlet: approx. 40 cm

• Made of high-quality polyethylene (PEHD)

• Chain length: 106 cm long

The backfill component is a part placed at the beginning of the sleeve. Its design allows waste to be poured directly from a wheelbarrow

TECHNICAL DATA:

• Height: 65 cm

• Length: 98 cm

• Width: 74 cm

• Diameter: approx. 40 cm

• Made from high-quality polyethylene

The supporting structure is the base for the entire system. It allows the debris chute feed element to be mounted on scaffolding or directly in a window opening.

TECHNICAL DATA:

• Material: galvanised steel

• Thickness: 1.8 mm

• Outer diameter of the pipe: 34 mm

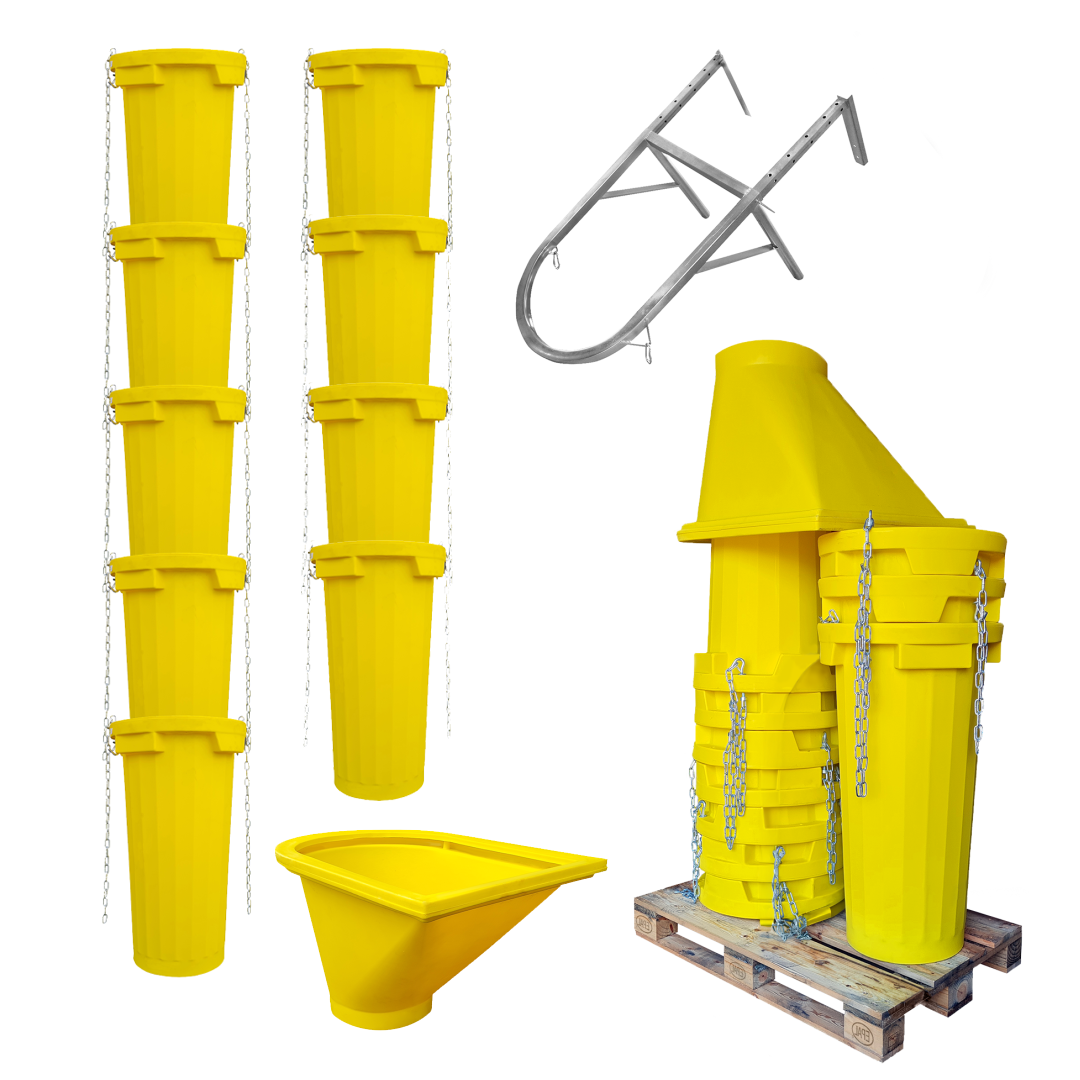

The system consists of:

• basic element: 9 pcs.

• filling element: 1 pc.

• supporting structure: 1 pc.
