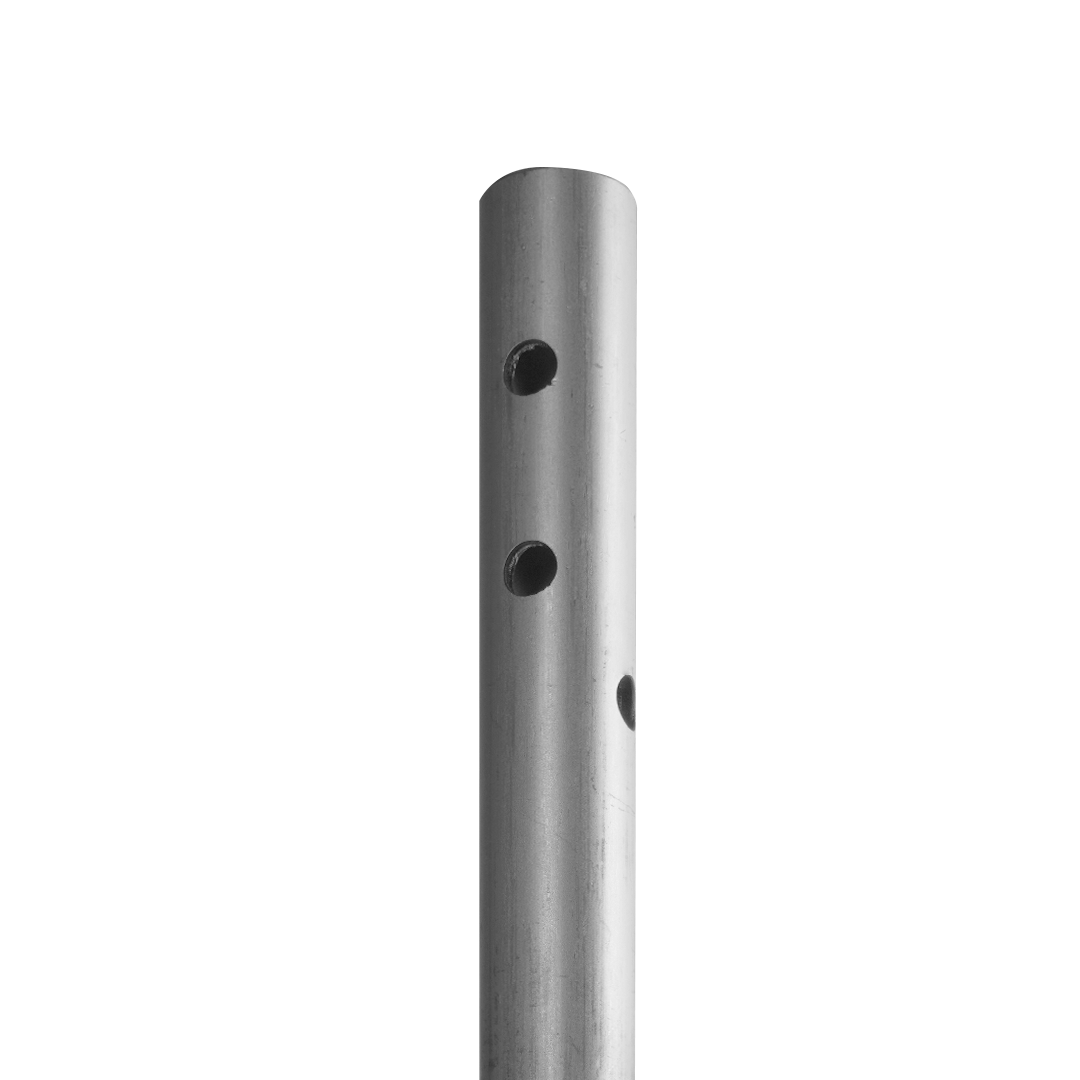

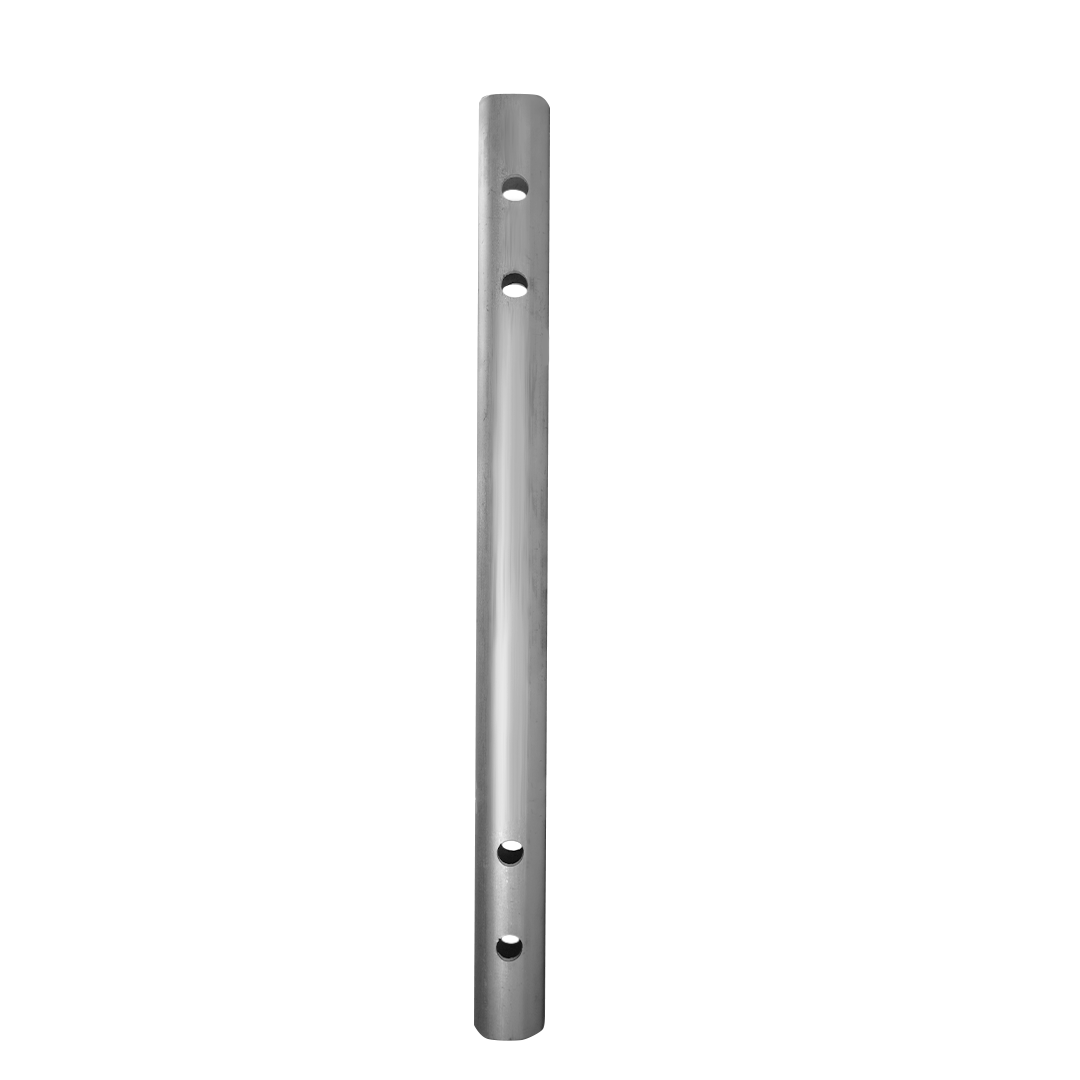

Beam joint

The girder connector is used when connecting lattice girders longitudinally.

Special holes in the element allow connection by means of bolts and nuts or pins and pins. The connector is resistant to deformation and can withstand high bending loads. The special design of the product guarantees a solid connection.

The product is made of steel. It is characterised by high strength, is resistant to mechanical damage and is very difficult to break. The zinc coating makes the connector resistant to the corrosion process.

Technical data:

• Length: 49.5 cm

• Wall thickness: 3.85 mm

• Tube diameter: 38 mm

• Hole diameter: 13 mm
