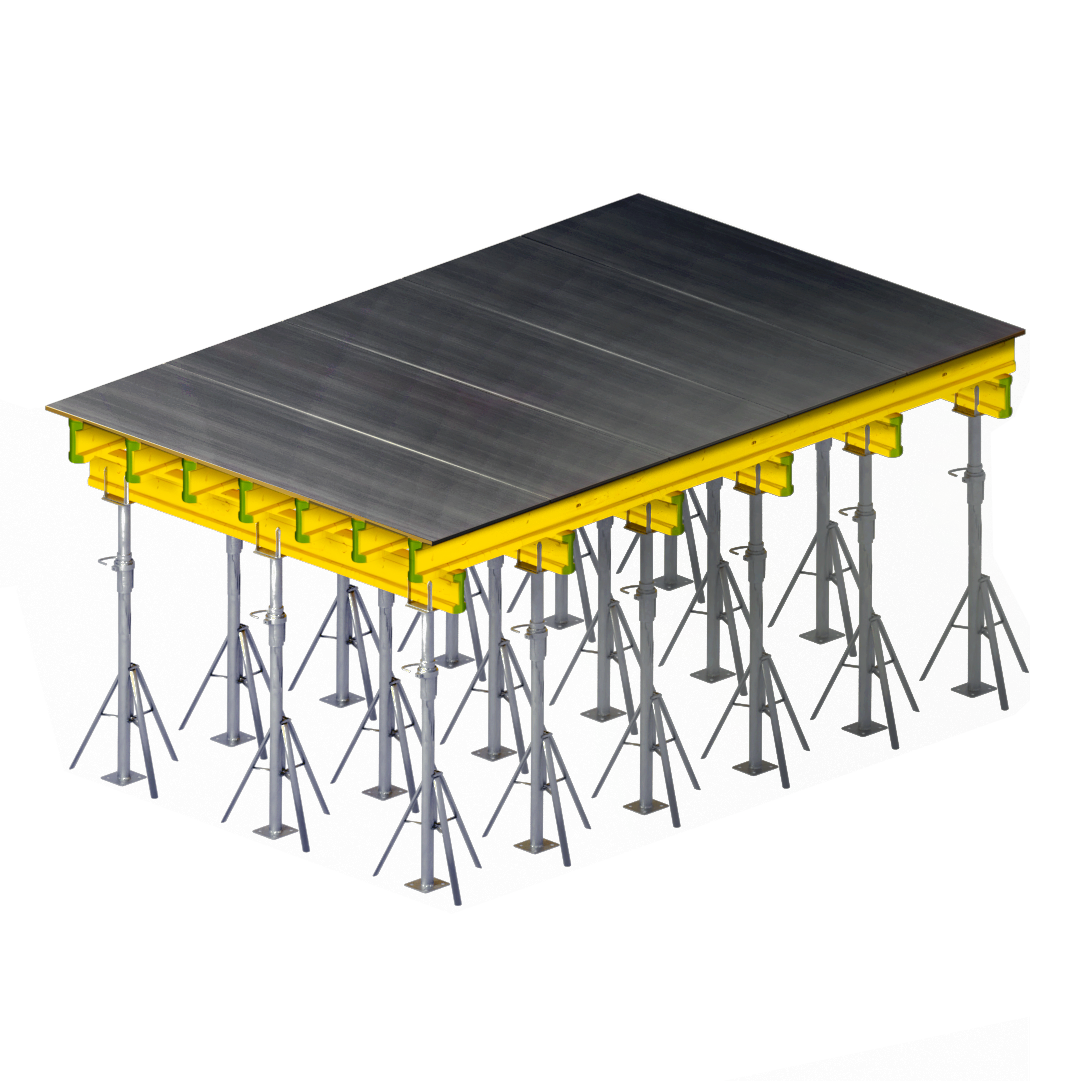

Ceiling formwork 100m2 10kN Poplar

Ceiling formwork 100m2 10kN 2,00-3,60m

The formwork built with it is extremely durable. Moreover, it has high resistance to mechanical damage and weather conditions. The components of the system are protected in an appropriate way. The steel parts have been galvanized, the wooden parts have been covered with a special protective paint.

Set specifications:

• Metric: 100m2

• Poplar plywood 18mm 100m2 (32plates)

• Support 2.00m-3.60m 10kN It



• The construction tripod at the initial stage stabilizes and protects the support from tipping. The tripod does not transfer any forces that can affect the support.

• The supports are built using the telescopic method. Special holes placed in the support every 10 cm provide protection against falling or crushing hands. Load capacity 10 kN.

• The construction head consists of a mandrel, support plate and arms. It is a support for H20 formwork beams. It keeps them upright and prevents them from slipping.
• The joist transfers loads to the main supports, providing permanent support. One of the main advantages of using joists is the use of fewer anchors.

• Poplar formwork plywood supports the reinforcement structure during concreting. Thanks to it you will give the right shape to the concrete mixture and get a smooth poured surface. The plywood we offer is coated with a special film that protects against concrete adhesion and moisture.

The set includes:

• Galvanized support 2.00-3.60m 10kN It - 100pcs.

• Galvanized tripod - 30pcs.

• Cross head - 50pcs.

• Wooden girder forged - 300mb

• Poplar plywood 18mm 100m2 (32plates)
