HD 20 kN ceiling support kit 2.00-3.60 m
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Description
HD 20 kN 3.6m Ceiling Support Kit
The kit was designed for the effective and safe construction of reinforced concrete ceilings. It consists of solid, galvanized elements with high durability, ensuring repeated use in construction conditions.
The set includes:
-

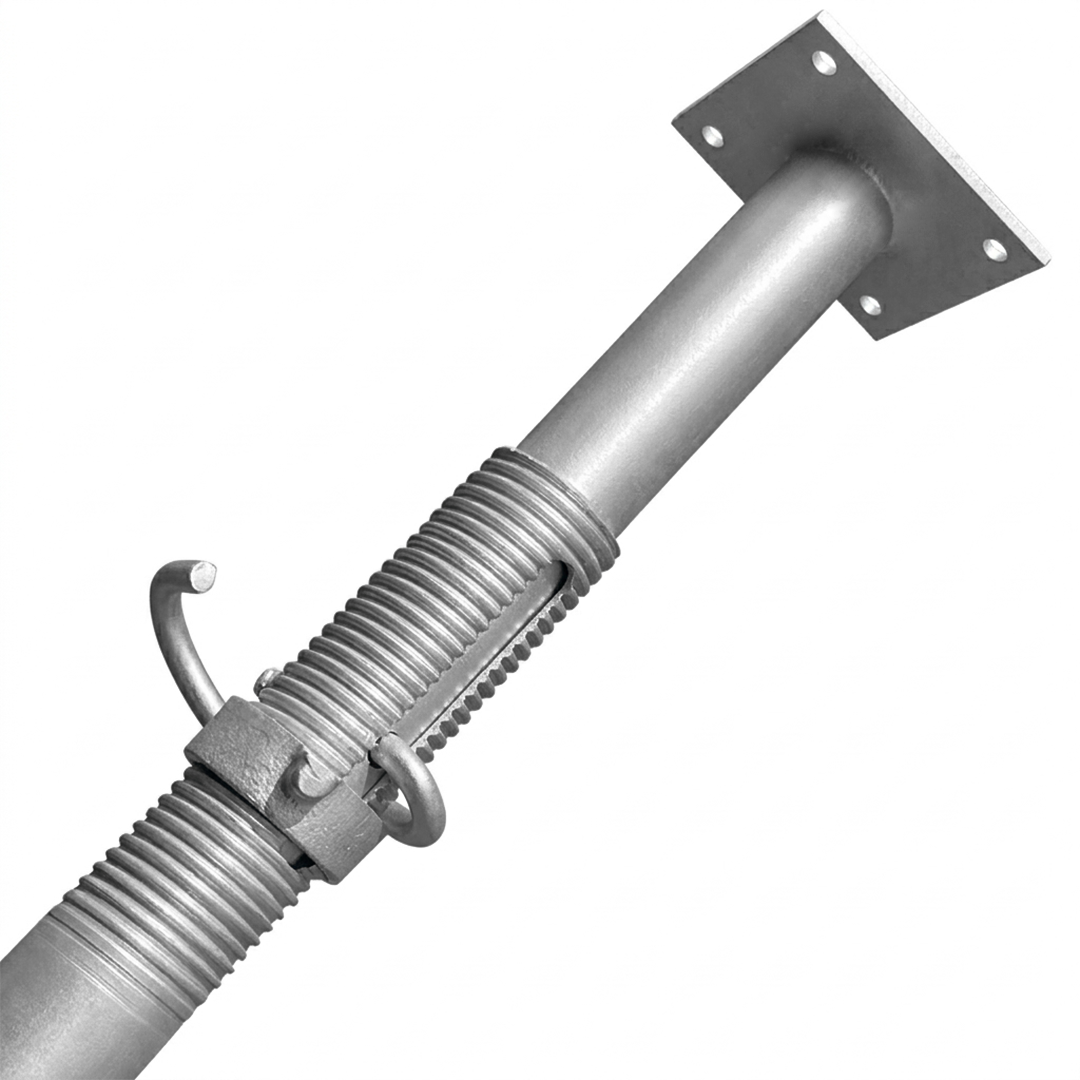

20kN HD Galvanized Support (2.00–3.60 m) – a durable steel telescopic support with a wide adjustment range, designed to carry heavy loads in reinforced concrete structures.
-
Cross head on rods – a mounting element enabling stable mounting of ceiling beams or formwork panels, ensuring uniform load transfer.
-
ECO Construction Support Tripod (4.50 kg) – a lightweight and functional base for stabilizing supports during assembly, ensuring work safety and quick system setup.
-
2500x1250x21mm ECO Poplar Plywood (21 mm) – a lightweight, yet durable formwork board, perfect for repeated use. use.
The set is a complete ceiling formwork support system – ready for immediate use on the construction site. It combines durability, ease of installation, and cost-effectiveness, making it an excellent choice for construction companies carrying out reinforced concrete works using monolithic technology.
Produkty w zestawie (4)
Regular price outside the bundle:
Regular price outside the bundle:
TECHNICAL DATA:
-
Load capacity 20 kN
-
Galvanized steel
-
External adjusting thread
-
Base thickness 5 mm
-
Wall thickness: 2.90mm
Regular price outside the bundle:
Regular price outside the bundle:
TECHNICAL DATA:
-
Total height: 31 cm
-
Height of the stem: 13 cm
-
Height of the arms: 18 cm
-
Base dimensions: 20 x 12 cm
Regular price outside the bundle:
Regular price outside the bundle:
TECHNICAL DATA:
- Height: 80 cm
- Base width: 98 cm
- Used for supports with a diameter of 40-70 mm
- Corrosion protection: electrogalvanised
- Weight: 4.50 kg
- Tube wall thickness: 2.50 mm
Regular price outside the bundle:
Regular price outside the bundle:
Technical specification:
- Material: Poplar wood
- Dimensions: 1.25 x 2.5 m
- Coating: Phenolic film (170 g/m²)
- Elasticity: 5215 MPa
- Bending strength: 53.45 MPa
- Thickness: 16 to 21 mm
- Condition: Refurbished (may contain concrete residue or nails)
