Manufacturer: Serwis Budowy (go to products)

Mobile set for Warsaw scaffolding

Technical specification:

Wheel diameter: 160 mm
Tread width: 40 mm
Load capacity per wheel: 200 kg
Wheel mounting plate dimensions: 10.2 x 12.9 cm
Wheel mounting hole spacing: 10.5 x 8.0 cm
Type of wheels in the set: 2x swivel without brake, 2x swivel with brake
Tread material: Black vibration-absorbing rubber
Base collar material: Galvanized steel
Base collar diameter (opening): Outer 45 mm / Inner 32 mm
Base stem length: 9 cm
Base plate dimensions: 13.5 x 11.0 cm
Base plate hole spacing: 10.5 x 7.5 cm
Base structural load capacity: 300 kg
Set contents: 2x wheel FI 160 mm with brake, 2x wheel FI 160 mm without brake, 4x galvanized base collar

Go to full description

Shipping

from €0.00 - Individual offer for delivery (Poland)

Sent to the email address provided in the order details

€58.57

Shipping costs are not included in the price.

Availability:

Out of Stock

Unavailable

Have a question about the product? Write to us at shop@serwisbudowy.eu

Description

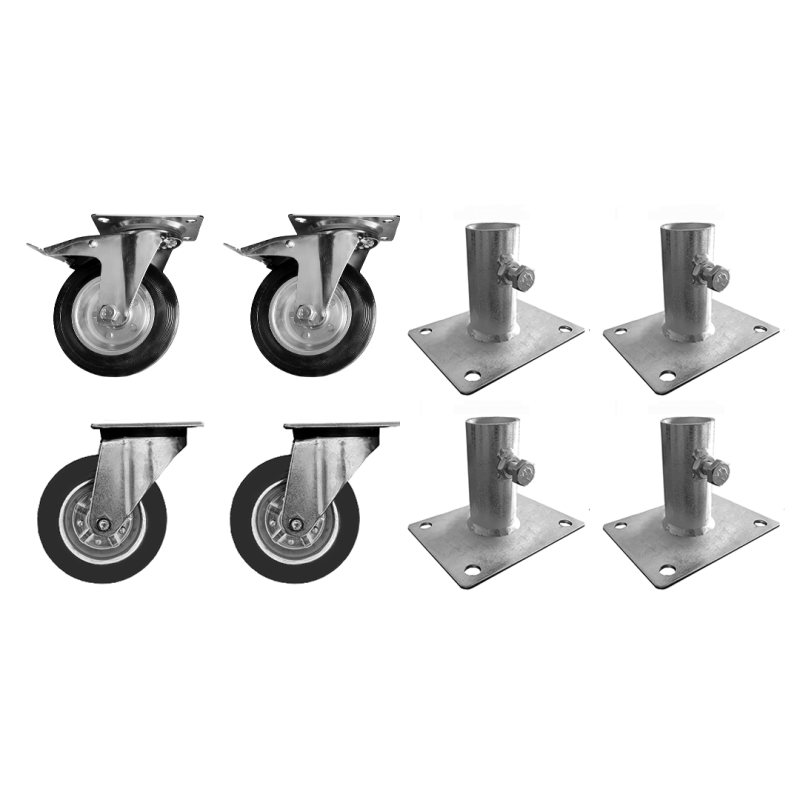

Castor set for Warsaw scaffolding: 4x wheel FI 160 mm (2x with brake, 2x without brake) + 4x galvanized base collar

The professional castor set for Warsaw scaffolding is a complete system solution designed to transform stationary frame scaffolding into a fully mobile and safe tower structure. The use of 160 mm diameter wheels combined with dedicated, reinforced galvanized base collars allows for smooth movement of the scaffolding within the area of construction, finishing, and installation works. Thanks to the optimal selection of components, the set guarantees stability, high safety when working at heights, and full compatibility with the elements of standard Warsaw scaffolding systems.

Key product advantages:

Comprehensive mobility and control: The configuration including two free-swiveling wheels and two wheels equipped with an effective locking mechanism (brake) allows for easy maneuvering of the structure as well as its secure and stable immobilization at the destination.
High load capacity and durability: Each wheel carries a working load of up to 200 kg, which, considering the dead weight of the scaffolding and the worker, ensures a high structural safety margin. The steel bases feature a unit load capacity of up to 300 kg.
Shock-absorbing rubber tread: The 40 mm wide wheels made of solid, elastic rubber effectively dampen vibrations, make it easier to overcome minor ground unevenness (e.g., thresholds, cables), and protect the flooring from scratching.
Corrosion protection: The four base collars included in the set have undergone a galvanic zinc plating process, which permanently protects the steel against the destructive effects of moisture, building mortar, and changing weather conditions.
Precise mounting fit: The outer diameter of the collar of 45 mm and the inner diameter of 32 mm ensure a perfect and stable seating of the legs of standard Warsaw scaffolding frames without excessive play.

Product application:

The castor set is fully compatible with the tubes and frames of traditional Warsaw scaffolding (both in black and galvanized tube options) used in the construction industry. It is dedicated to masonry, plastering, painting, installation of electrical and ventilation systems, as well as maintenance work inside and outside buildings. It performs perfectly on hardened concrete surfaces, screeds, asphalt, and stable industrial substrates.
