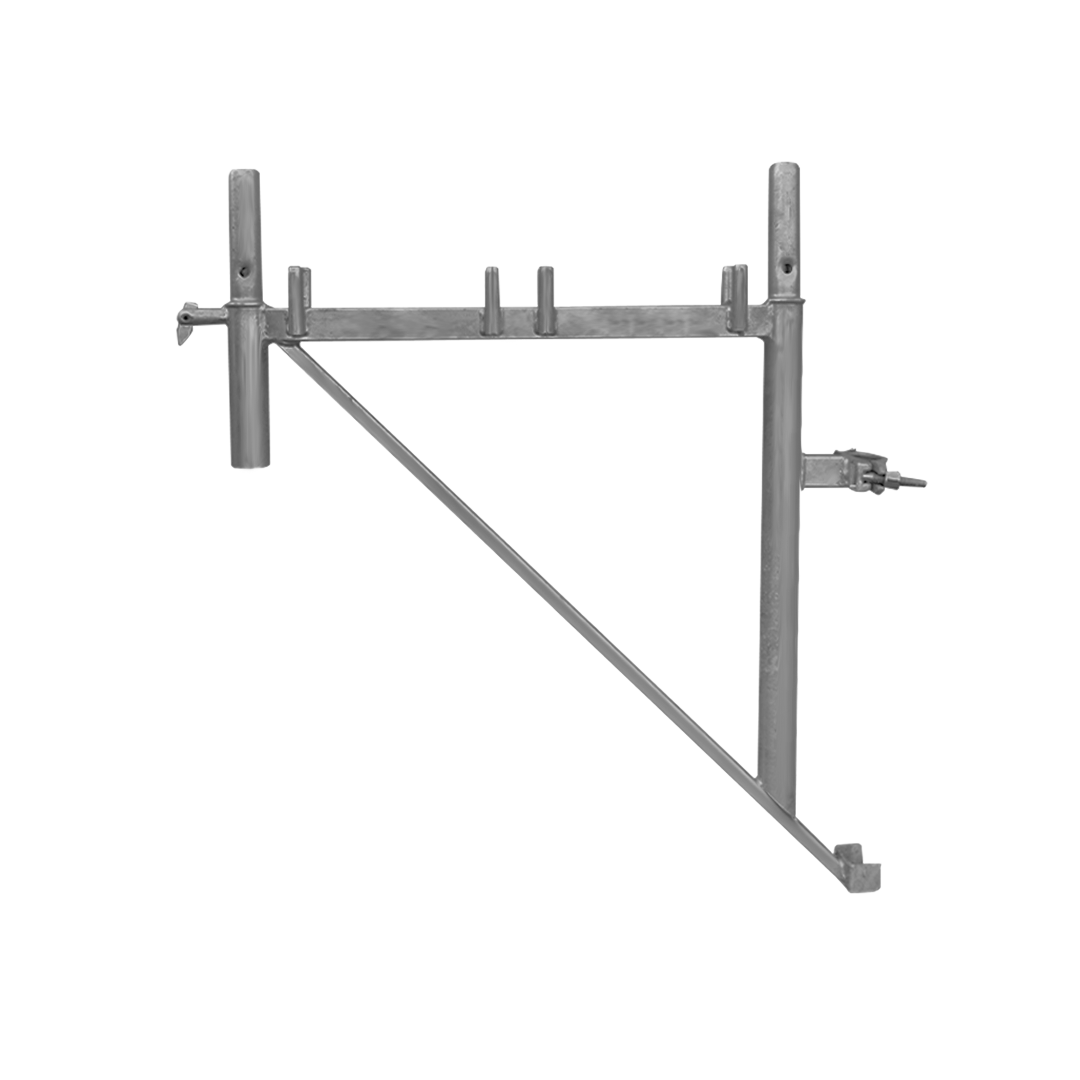

CONSOLE RUX R65 0.60m

This is a complementary element to the scaffolding. It is used to extend the working platform. The working platform bracket will enable you to extend the scaffolding structure not only outwards, but also inwards.

The consoles must be installed at platform height. They are placed on the outermost fields that need to be anchored. The brackets can be moved to higher scaffolding levels.

TECHNICAL DATA:

• Shank length: 16.5 cm
• Bottom bracket dimensions: 40x40 mm
• Pipe outer diameter: 48 mm
• Internal tube diameter: 41 mm
