Set of architectural cones with adhesive

The cone is fixed in the hole left by the tie rod using adhesive, epoxy resin, or chemical anchors to ensure complete tightness. For a better aesthetic effect, a concrete cone is used, which, once fixed, further increases the tightness, preventing leaks on the outside of the concrete and plastic pipes. When installing the plug, it is recommended to turn it 180° to distribute the adhesive evenly.

Standard PN-EN 206:2014, Annex B, point B 3.2.

Technical data:

• Total length: 30 mm.

• Plug length: 24 mm.

• Plug diameter: 20 mm.

• Washer diameter: 38 mm.

• Packaging: 200 pieces.

Formwork plug adhesive is a specialized two-component preparation designed for permanent fixing of plugs in formwork tie holes. It provides high adhesion and excellent tightness, which guarantees effective sealing of concrete structures. Ideal for use in demanding construction conditions.

Technical data:

• Adhesive layer: 2-10 minutes

• Working time at 23°C: 60-80 minutes

• Working temperature: 5°C - 40°C

• Operating temperature: -30°C - 80°C

• Waterproof and frost-resistant

• Standard: EN 1504-3:2005

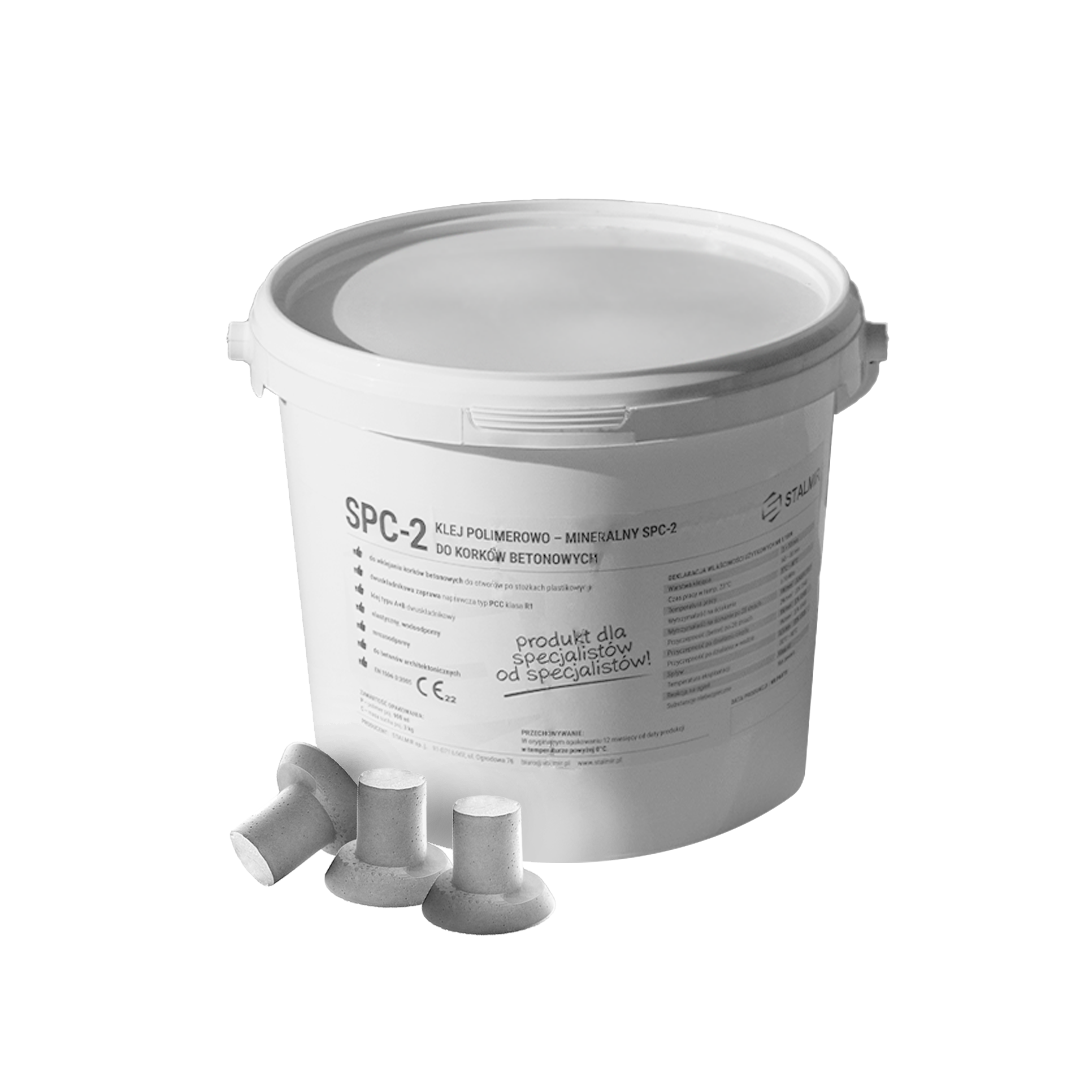

The set includes:

• Architectural cone: 200 pcs.

• PC-2 adhesive (3kg+950ml): 1 pc.
