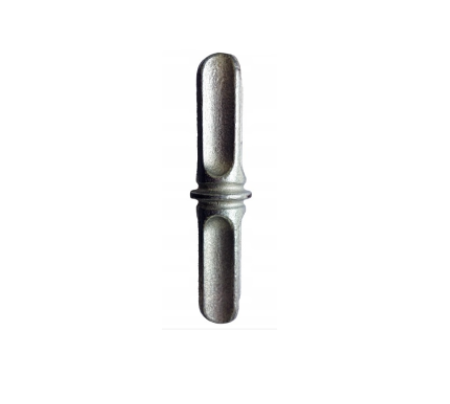

TUBE CONNECTOR JOINT

You will use the pin to connect 48,3 mm pipes. The element keeps the pipes in a fixed position, prevents their crushing and transfers the compressive forces acting on them.

The product offered by us is used to extend the stands of pipe-connected scaffolding, as well as stringers, platform transoms and handrails.

The tube connector guarantees to obtain a solid fixing. It fits Plettac, Rux, Baumann and Bosta type system.

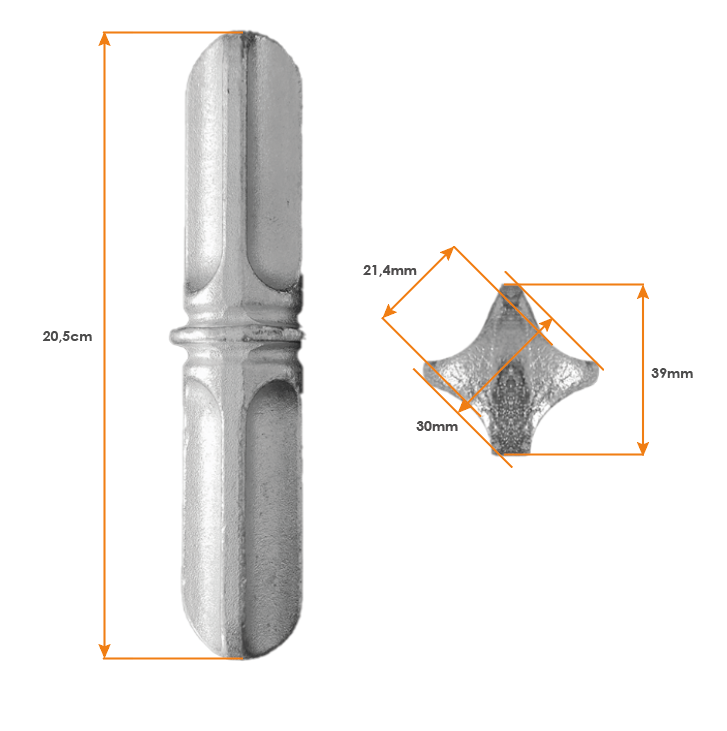

TECHNICAL DATA:

• Overall height: 20.5 cm
• Diameter of the rim: 47 mm
• Tip dimensions: 21.4x30x39 mm
• Material: galvanized steel
• Fits pipes fi 48.3 mm

We provide:

Friendly and proafessional service

Loading and transportation (courier, shipping, own transport)

Transportation throughout Europe

Technical and operational documents

Declaration of conformity

We encourage you to contact us.
