Manufacturer: Serwis Budowy (go to products)

Wheel with brake for warsaw scaffolding

Technical specification:

Wheel diameter: 160 mm
Tread width: 40 mm
Working load capacity per wheel: 200 kg
Mounting plate dimensions: 10.2 x 12.9 cm
Bolt hole spacing: 10.5 x 8 cm
Factory tread marking: 160/40-80
Wheel type: Swivel with total lock brake
Bracket material: Galvanized steel
Tread material: Reinforced elastic rubber (black)

Go to full description

Shipping

from €0.00 - Individual offer for delivery (Poland)

Sent to the email address provided in the order details

€10.67

Shipping costs are not included in the price.

Quantity

pcs

Availability:

Fully Stocked

Have a question about the product? Write to us at shop@serwisbudowy.eu

Description

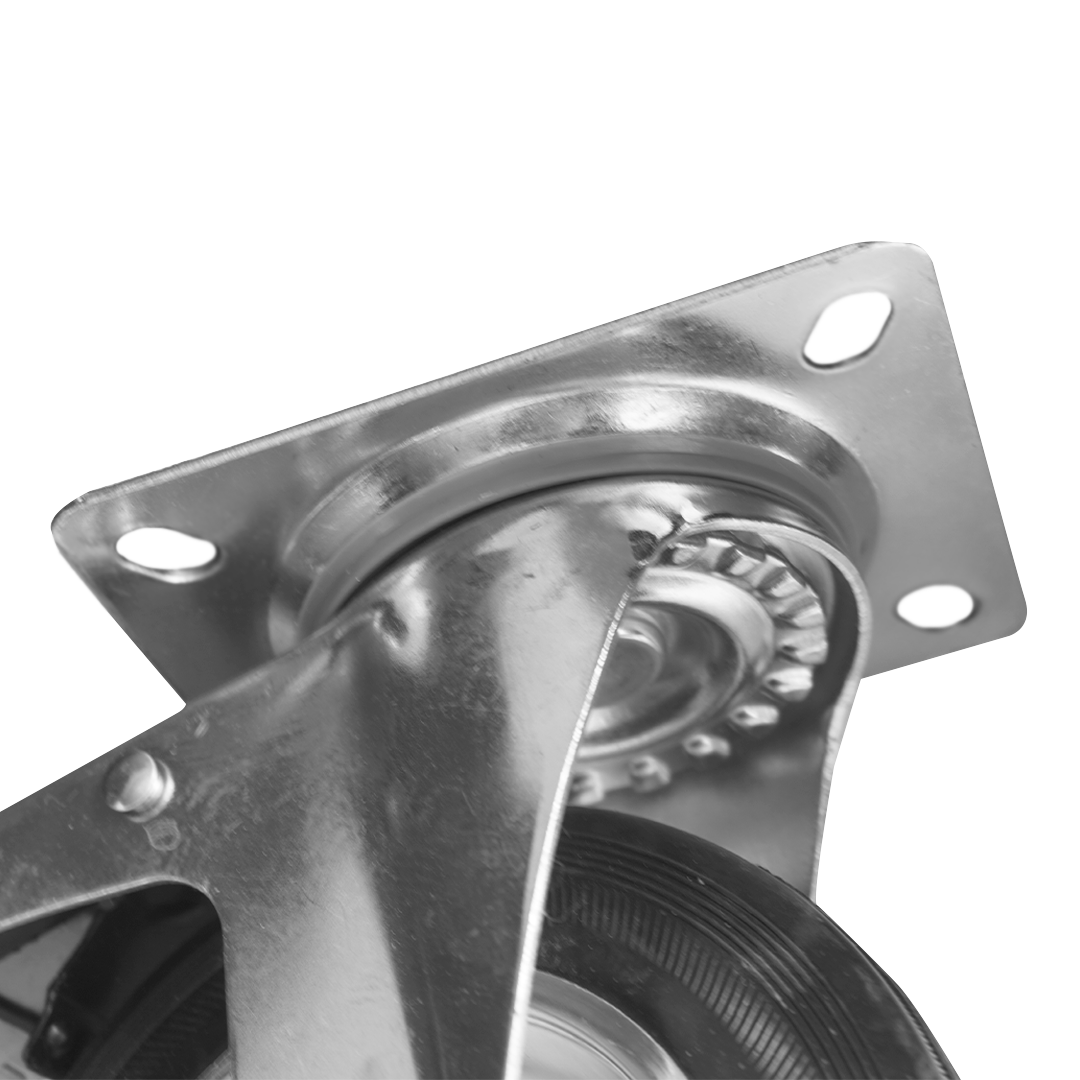

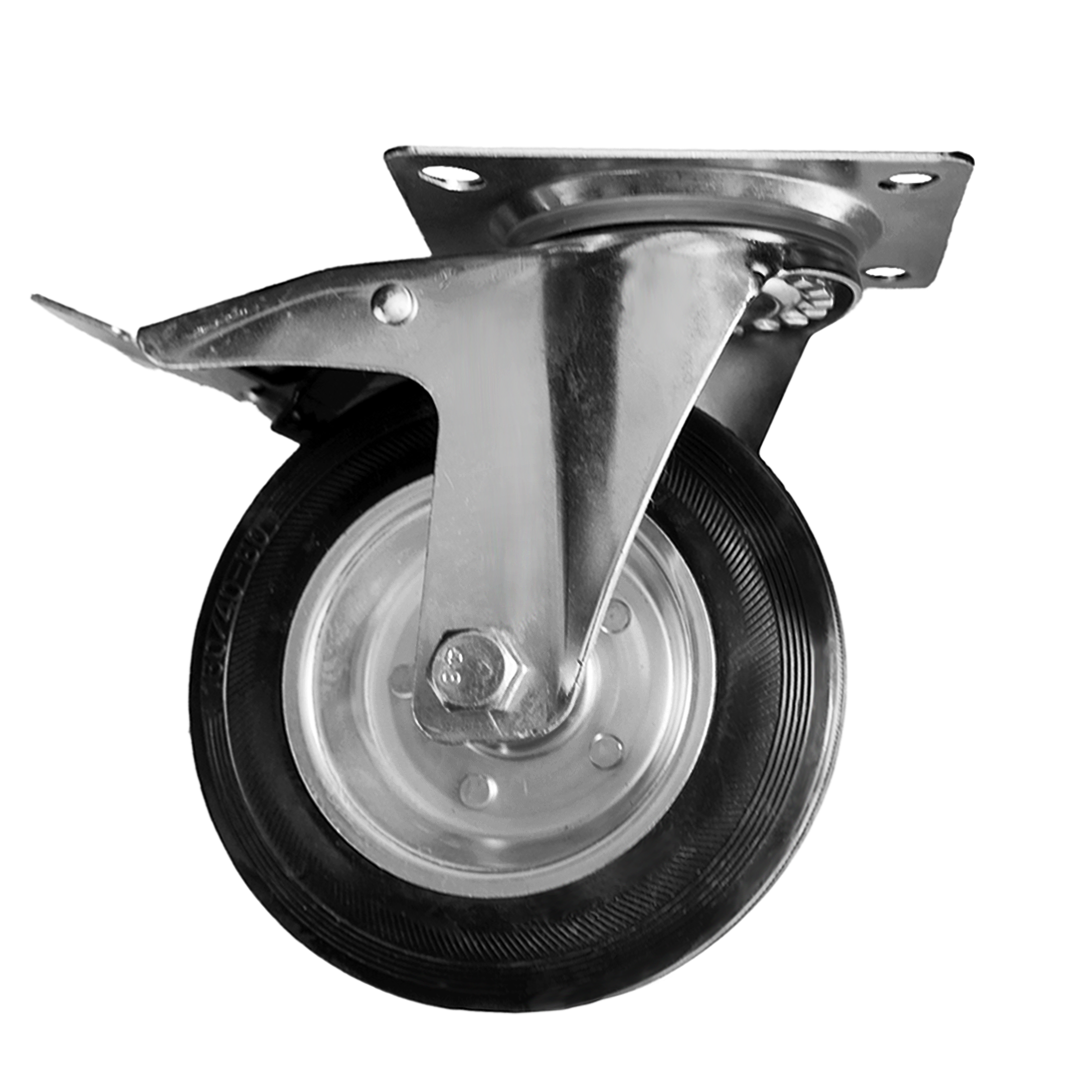

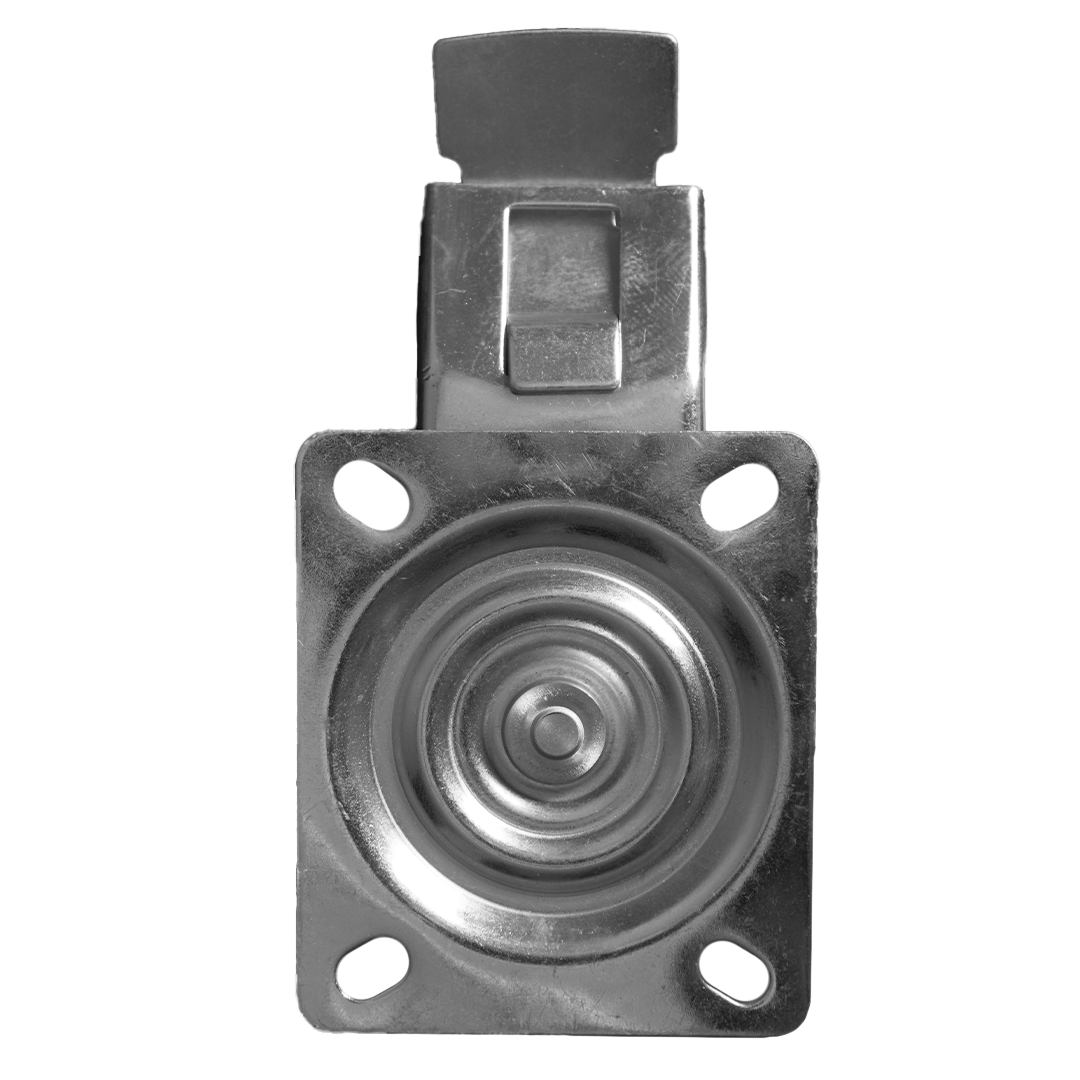

Scaffolding wheel with brake for Warsaw scaffolding WW FI 160

The Scaffolding wheel with brake for Warsaw scaffolding WW FI 160 is a professional castor component designed to ensure full mobility and safety of scaffolding structures. This product enables efficient movement of the scaffolding tower at the site of construction, installation, or finishing works, without the need for troublesome dismantling of the entire structure. The use of a robust, integrated locking mechanism allows for immediate immobilization of the scaffolding and guarantees a stable, secure position while working at heights.

Key product advantages:

High loading capacity: The construction withstands a load of up to 200 kg per single wheel, which allows for safe support of the scaffolding weight along with workers and necessary tools.
Integrated safety brake: The solid metal locking mechanism effectively locks both the wheel rotation and the swivel of the bracket itself, eliminating any risk of accidental movement of the structure.
Full 360-degree rotation: The ball-bearing swivel system in the head ensures smooth maneuvering even under heavy loads, making it easy to bypass obstacles on the construction site.

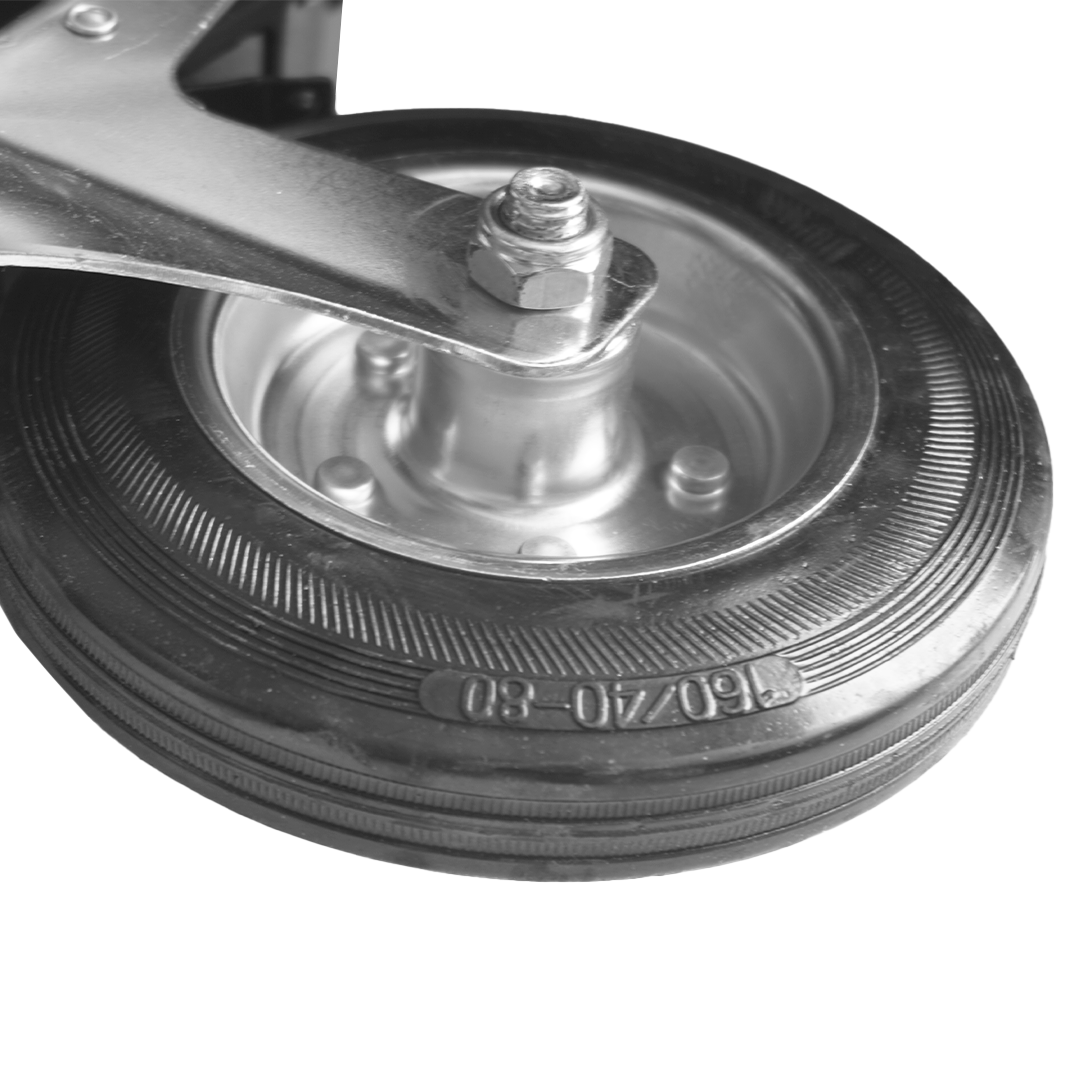

Durable rubber tread: The elastic black rubber (marked 160/40-80) effectively dampens vibrations, absorbs ground unevenness, and shows high resistance to abrasive wear.
Corrosion-resistant housing: The steel top plate and fork are galvanized, which protects the component against the negative impact of moisture, construction mortar, and changing weather conditions.

Product application:

The product is fully compatible with Warsaw scaffolding systems (WW) and universal mobile structures. The standard bolt hole spacing (10.5 x 8 cm) on the rectangular plate allows for quick installation to dedicated screw jacks or directly to the bottom scaffolding frames. The wheel is perfect for indoor use (on concrete screeds, tiles) as well as on hardened outdoor surfaces during facade and assembly works.
