Manufacturer: Serwis Budowy (go to products)

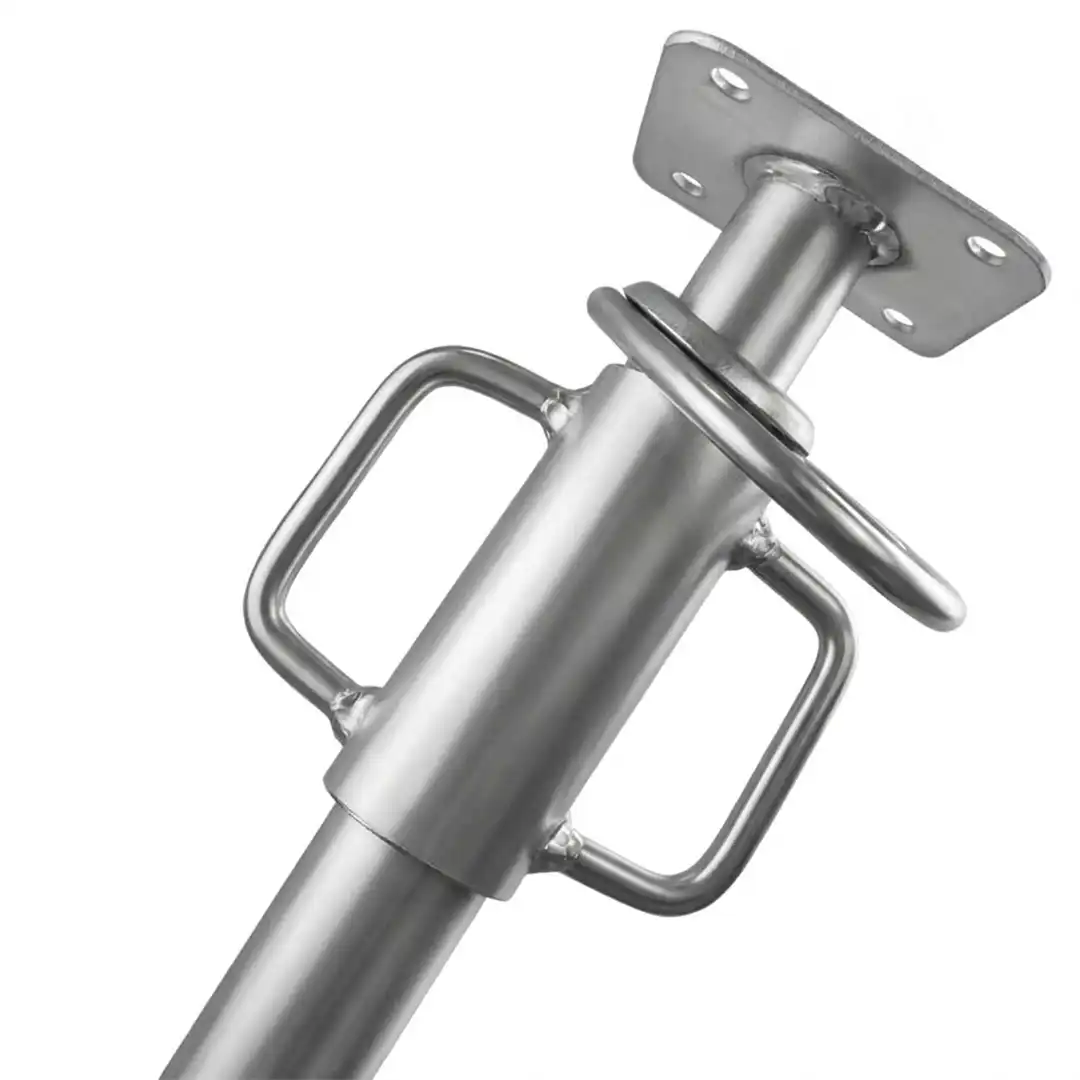

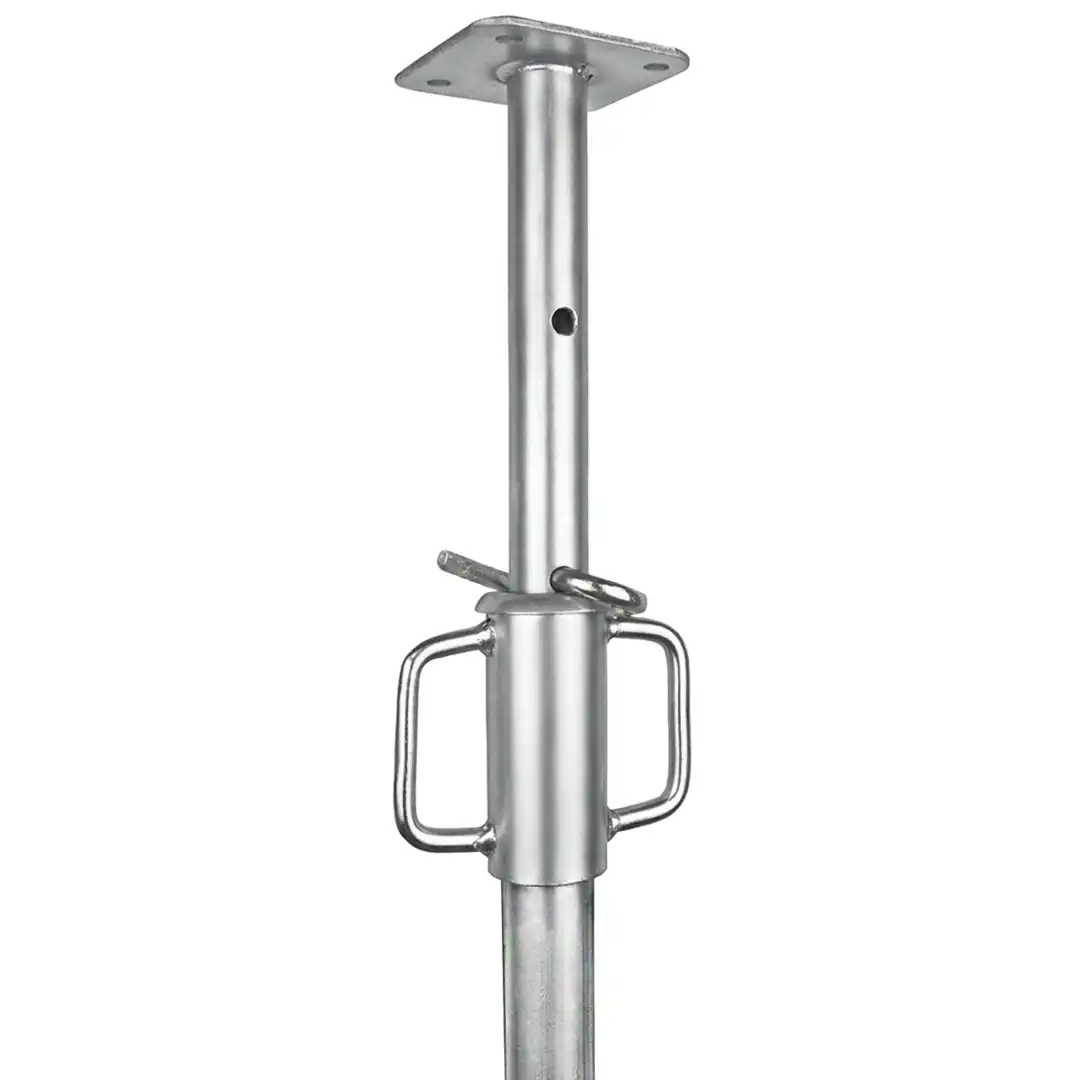

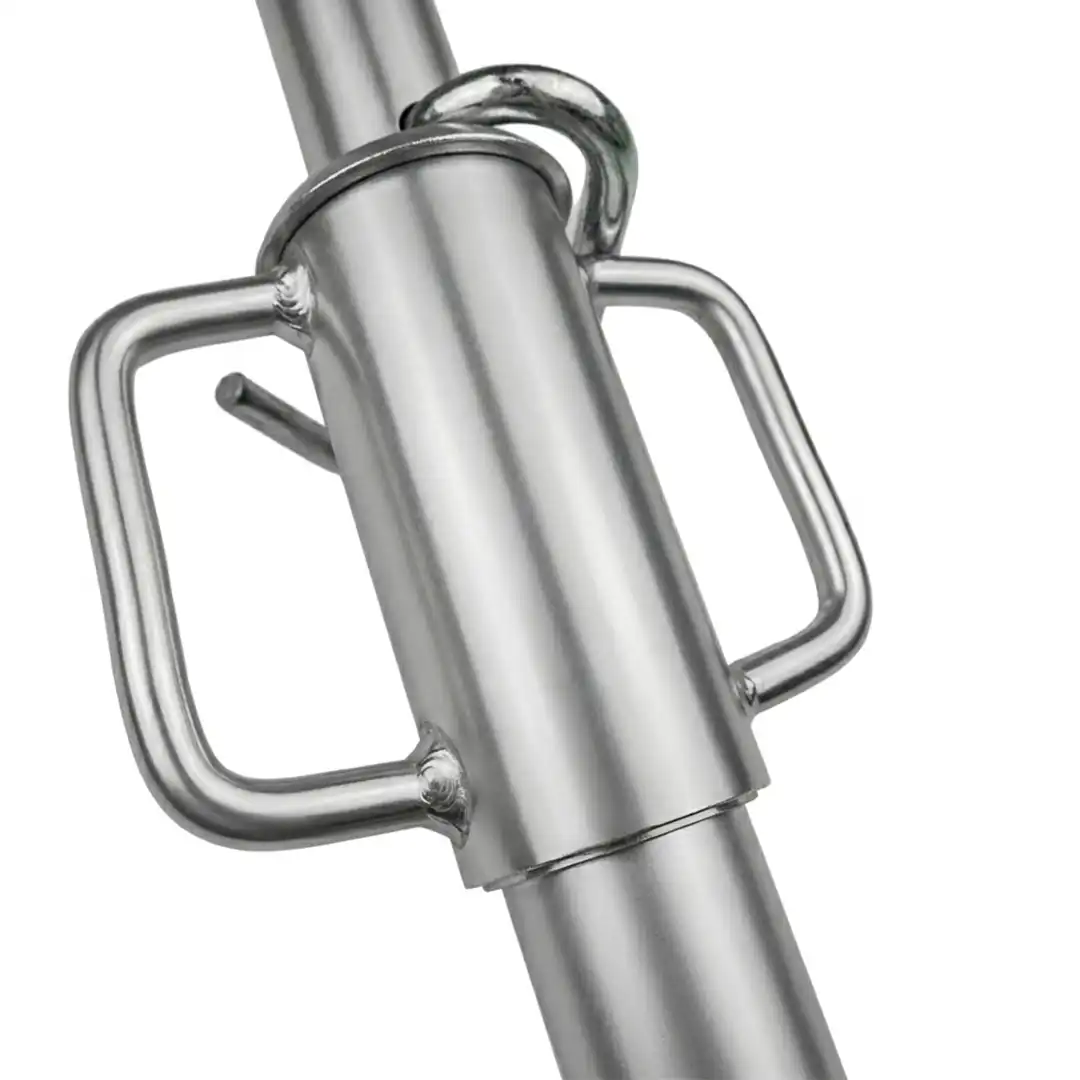

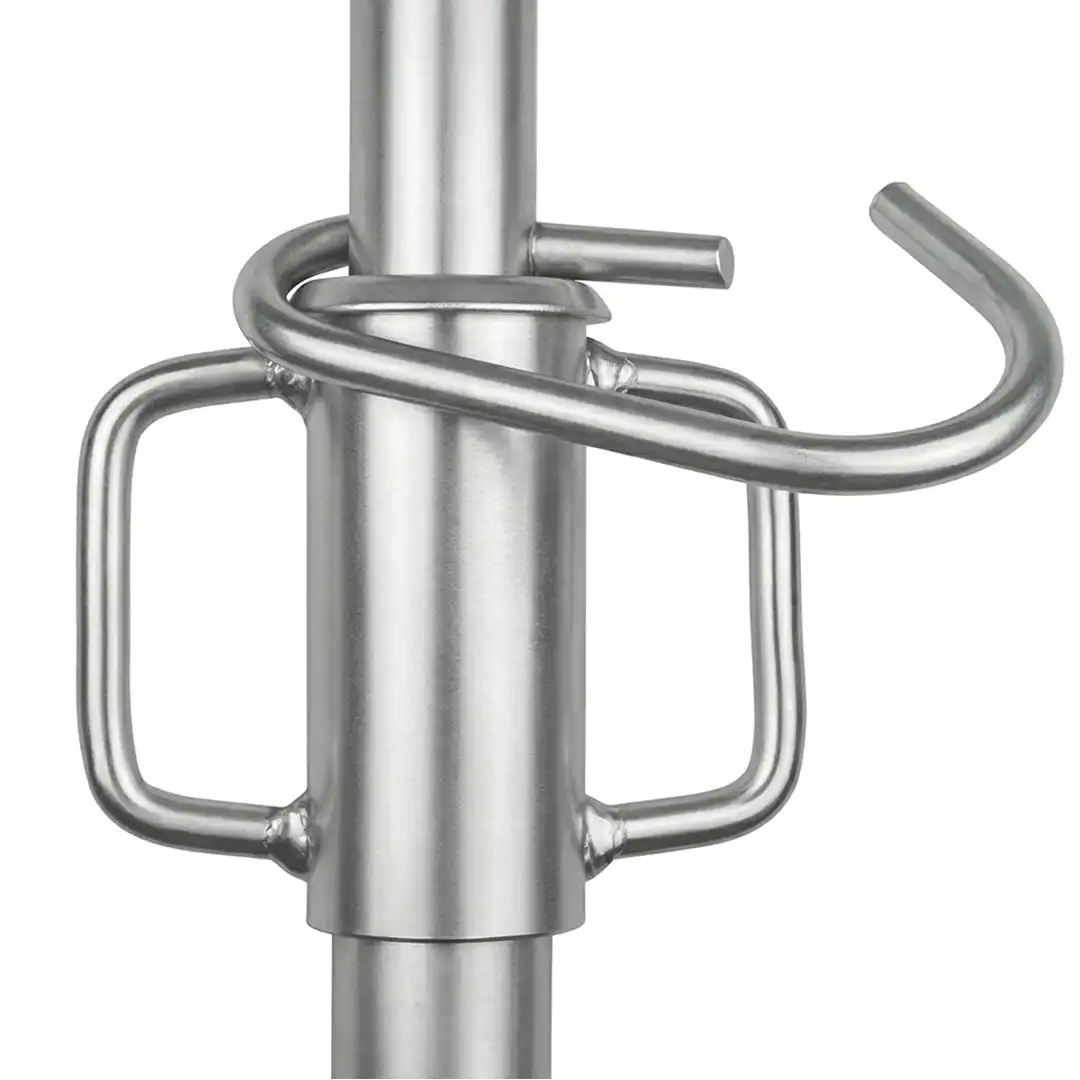

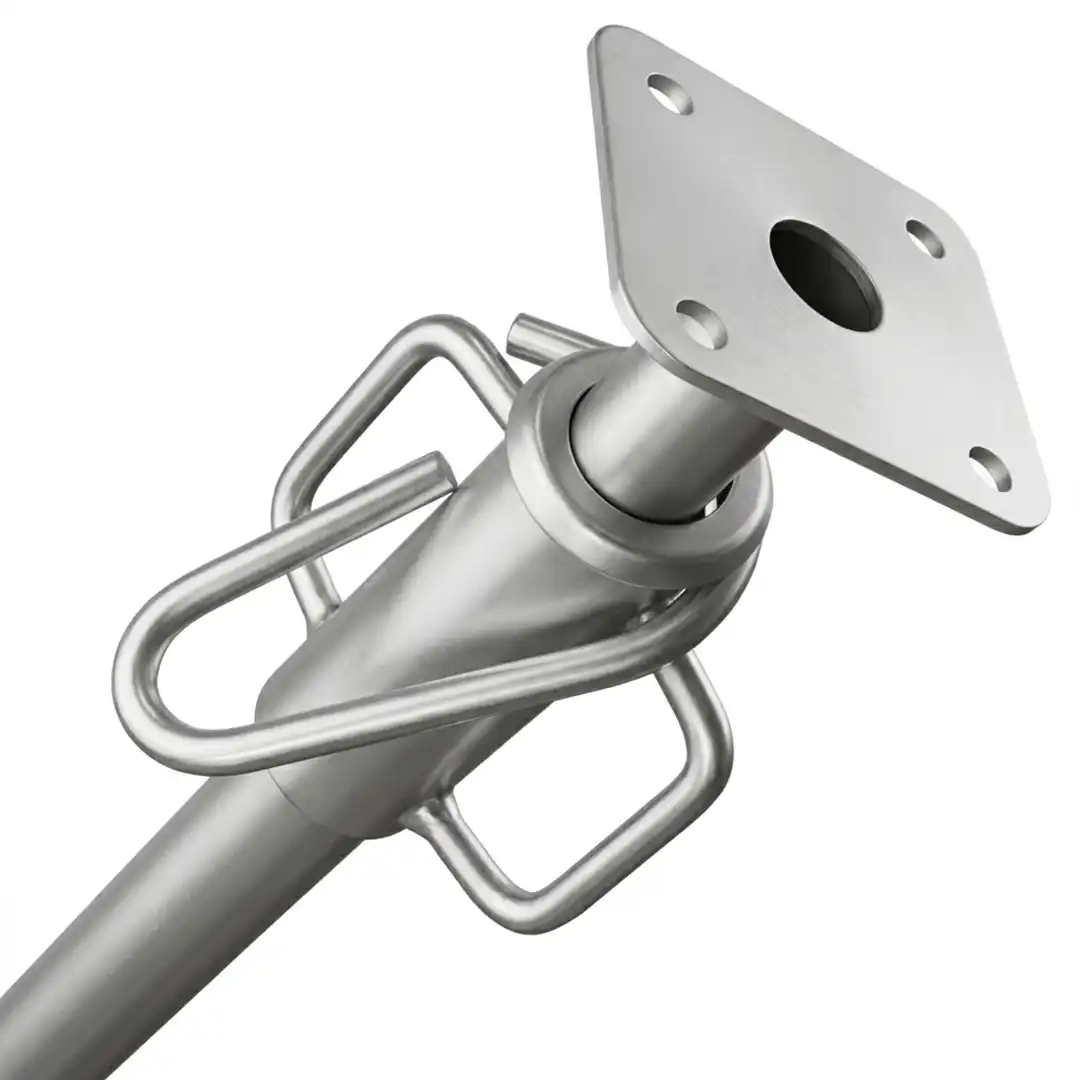

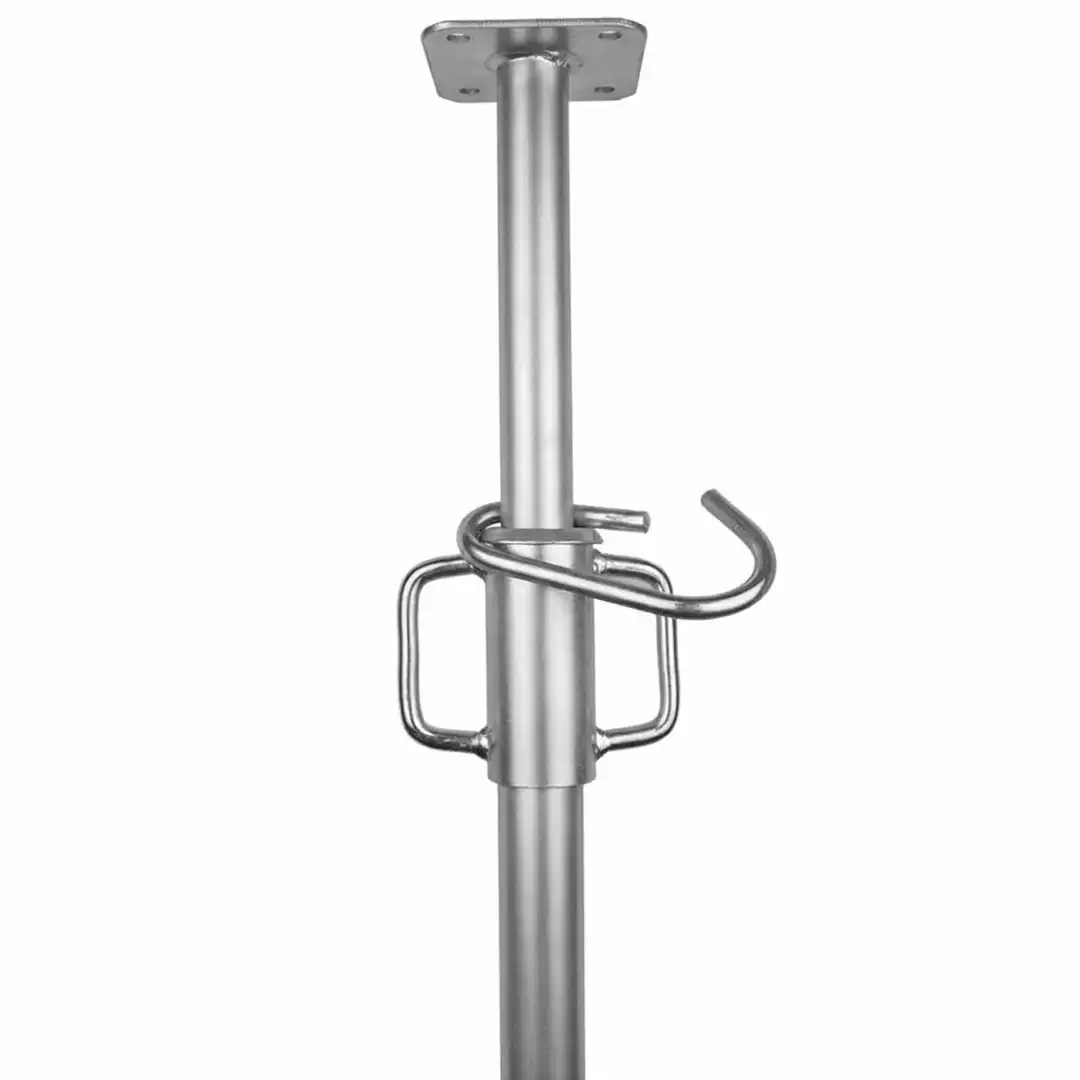

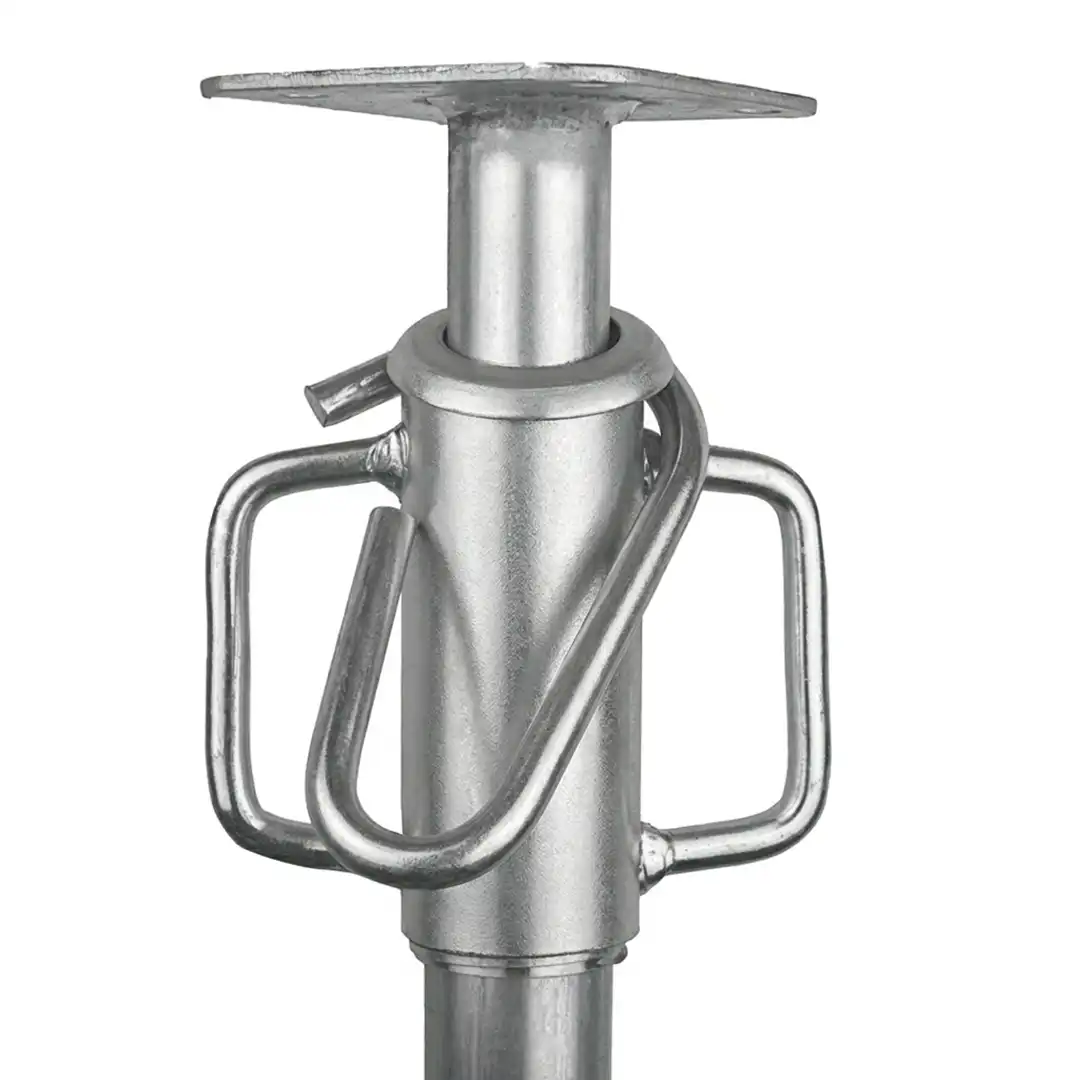

10 kN Italian-style ceiling prop

TECHNICAL SPECIFICATIONS:

Load capacity: 10 (approx. 1 t)
Support type: Italian
Thread: adjustable internal
Material: galvanized steel
Outer tube diameter: 56 mm (wall thickness: 1.6 mm)
Inner tube diameter: 48 mm (wall thickness: 1.6 mm)
Base thickness: 4 mm (with mounting holes)
Quantity: 1 piece
Compliance with EU standards

Go to full description

Shipping

from €0.00 - Individual offer for delivery (Poland)

Sent to the email address provided in the order details

€16.57

The lowest price during 30 days prior to the reduction: €16.57

The promotion runs until 30 November 2026

Shipping costs are not included in the price.

Wybierz wariant produktu:

Individual variants may differ in price

Options

1,60-2-90m

1,80-3,20m

Unavailable

2,00-3,60m

2,20-4,00m

2,40-4,50m

2,80-5,00m

Unavailable

Quantity

pcs

Availability:

Fully Stocked

Have a question about the product? Write to us at shop@serwisbudowy.eu

Description

GALVANIZED SLAB PROP 10kN – ITALIAN TYPE

The 10kN Italian-type slab prop is a reliable and cost-effective component of temporary slab formwork systems. It is designed to transfer vertical loads during the formwork of slabs, beams, and lintels, as well as during reinforced concrete work in residential and industrial construction.

Made entirely of galvanized steel, the prop features exceptional resistance to corrosion, mechanical damage, and the harsh weather conditions found on construction sites.

Key advantages of the 10kN Italian-style prop:

Guaranteed 10 kN load capacity: safe and stable support for slab structures in accordance with industry standards.
Full anti-corrosion protection (galvanized steel): the entire unit—shaft, thread, and safety components—is protected against rust and construction chemicals.

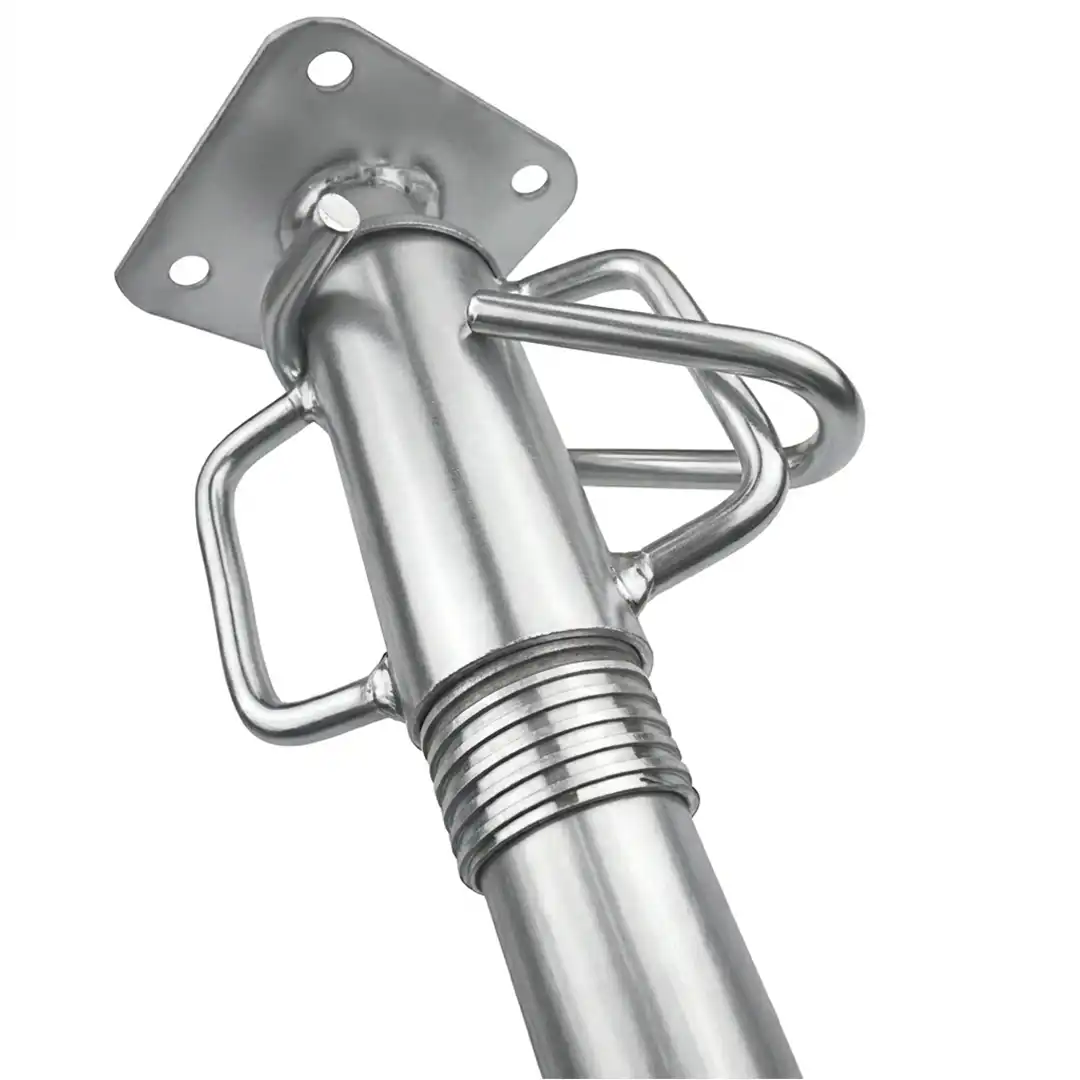

Smooth height adjustment: threaded adjustment sleeve/nut. enables precise adjustment of the formwork height to the nearest millimeter.
Incremental adjustment (10 cm steps): holes in the inner tube and a locking pin (cotter pin) allow for quick initial length setting.
Versatile application: compatible with standard H20 formwork beams, fork/cross heads, and stabilizing tripods.

Applications for construction props:

Italian-type 10kN construction props are used for:

shoring reinforced concrete slabs (monolithic, ribbed, Teriva, Filigran),
supporting lintels, beams, and columns,
assembly of traditional and system formwork.

Frequently Asked Questions (FAQ)

1. Is the prop suitable for use with H20 girders?

Yes, the prop is fully compatible with standard formwork heads (crossheads) that support H20 timber formwork girders.

2. How do I determine the number of props per m² of slab?

The number and spacing of props depend on the slab thickness, the weight of the concrete mix, and the density of the girder grid. Always refer to the formwork execution plan or consult our technical advisor regarding spacing.

3. How does the Italian-style prop differ from the 20–14 kN prop?

The Italian-style prop features a lighter and more economical design, making it a very popular choice for lighter-duty tasks in single-family home construction and smaller renovation projects.
