Ribbons
50 Italian-style ceiling supports
TECHNICAL SPECIFICATIONS:
- Quantity per set: 50 pcs.
- Support type: italian
- Load capacity: 10 kN (approx. 1 t)
- Adjustment range: 1.60–4.50 m (depending on the selected variant!)
- Material: galvanized steel (pre-galvanized)
- Outer tube diameter: 56 mm (wall thickness 1.6 mm)
- Inner pipe diameter: 48 mm (wall thickness 1.6 mm)
- Base thickness: 4 mm
- Step-by-step adjustment: holes in the inner tube every 12.5 cm
- Standards and compliance: compliant with European Union (EU) standards
Sent to the email address provided in the order details
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Wybierz wariant produktu:
Individual variants may differ in price
Options
Share the product card
Description

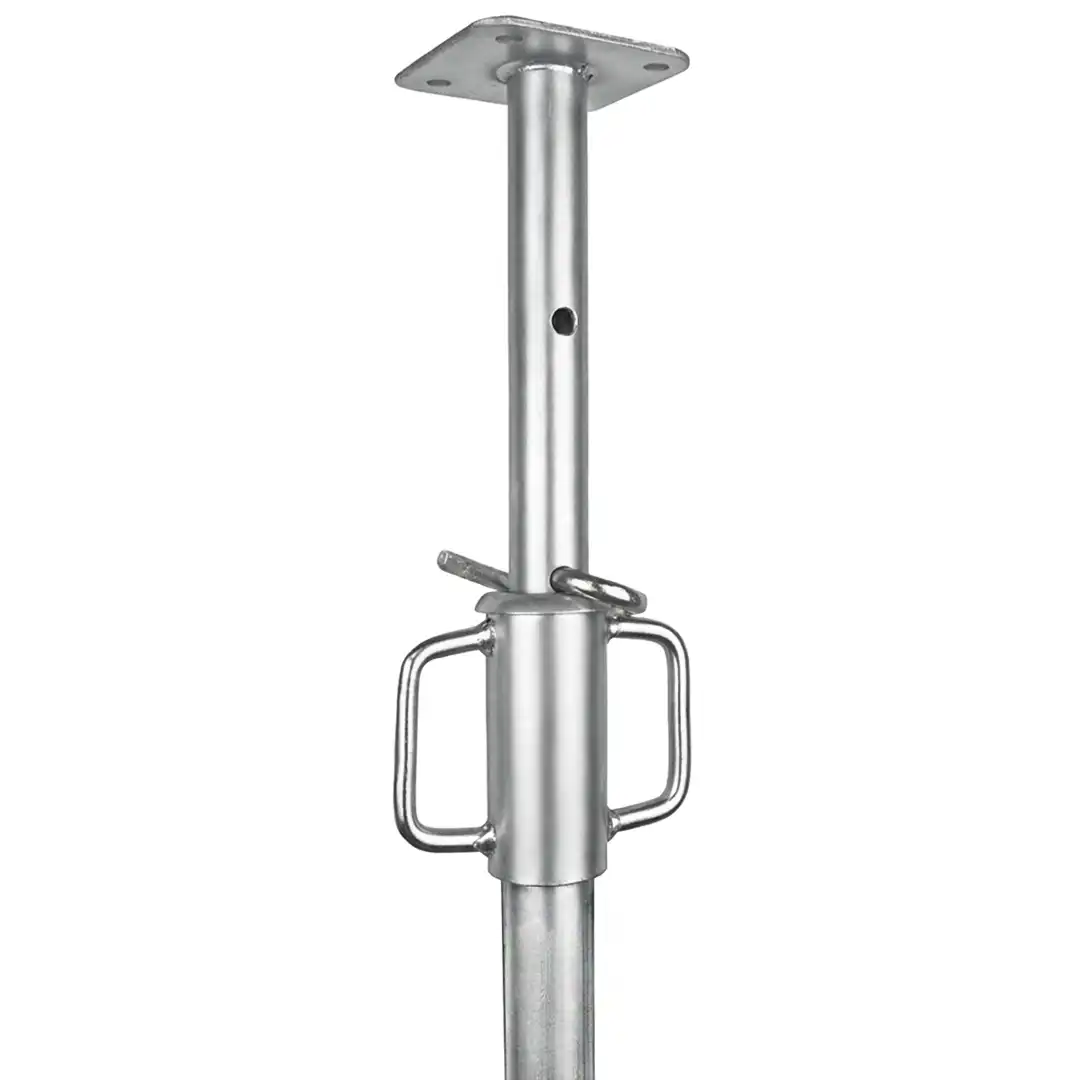

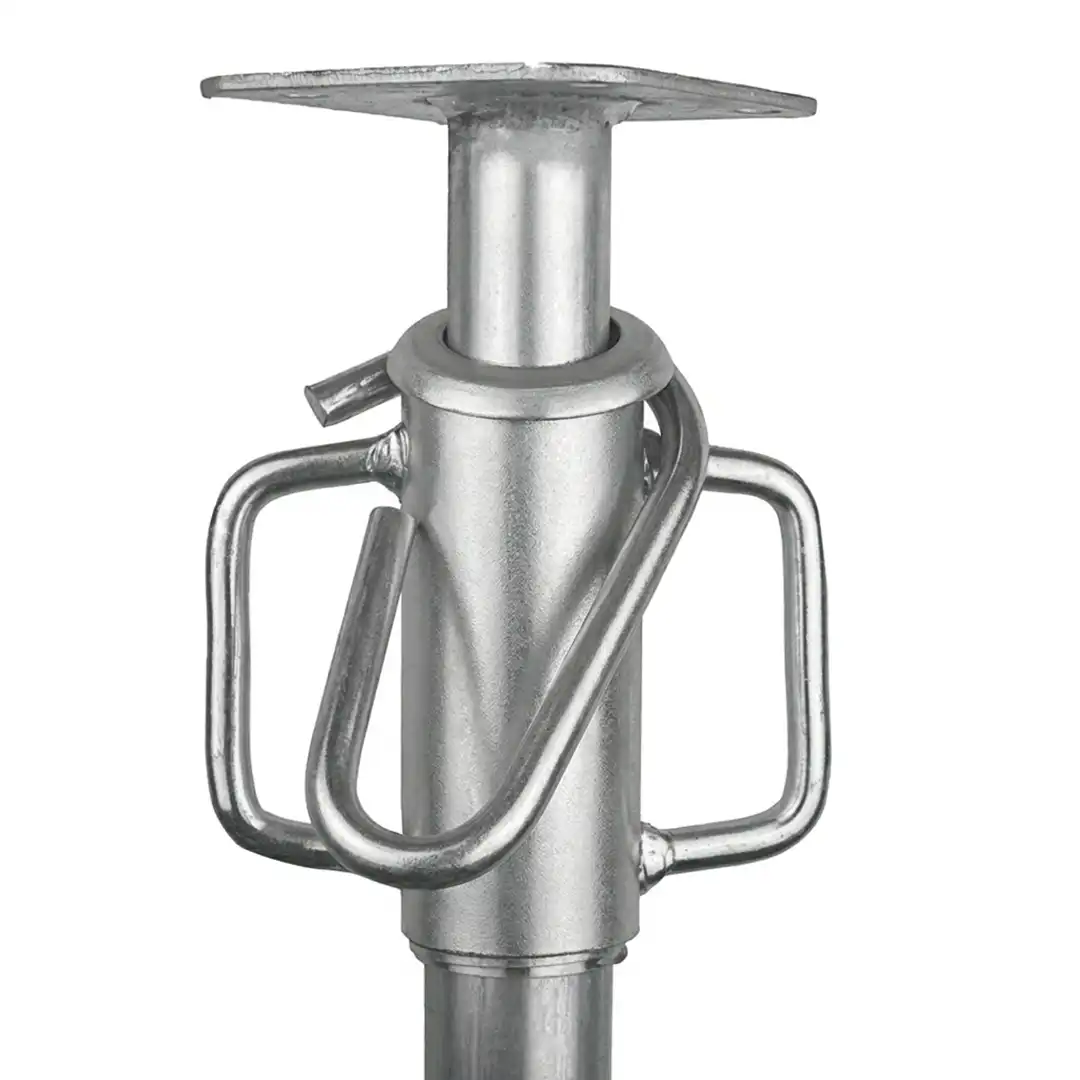

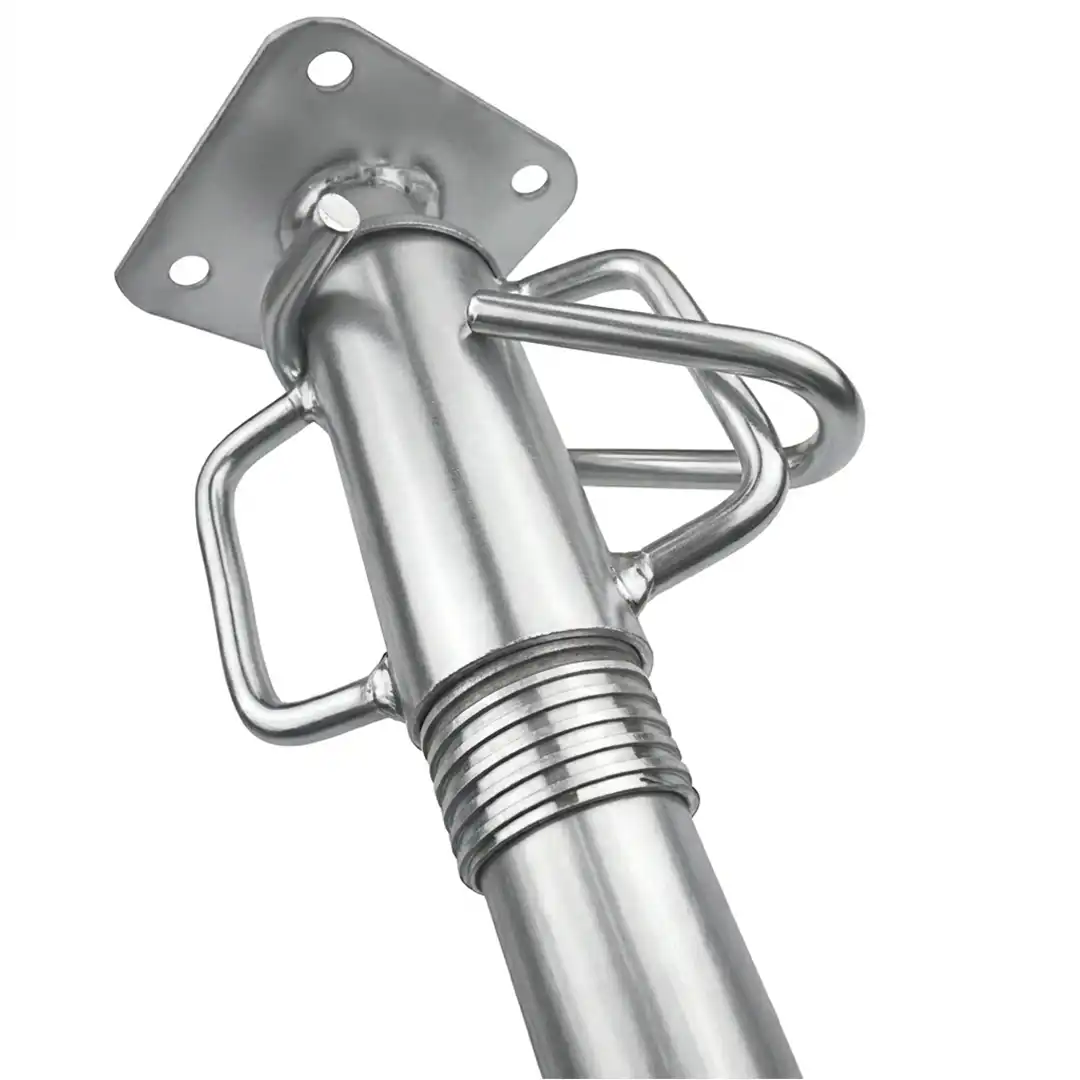

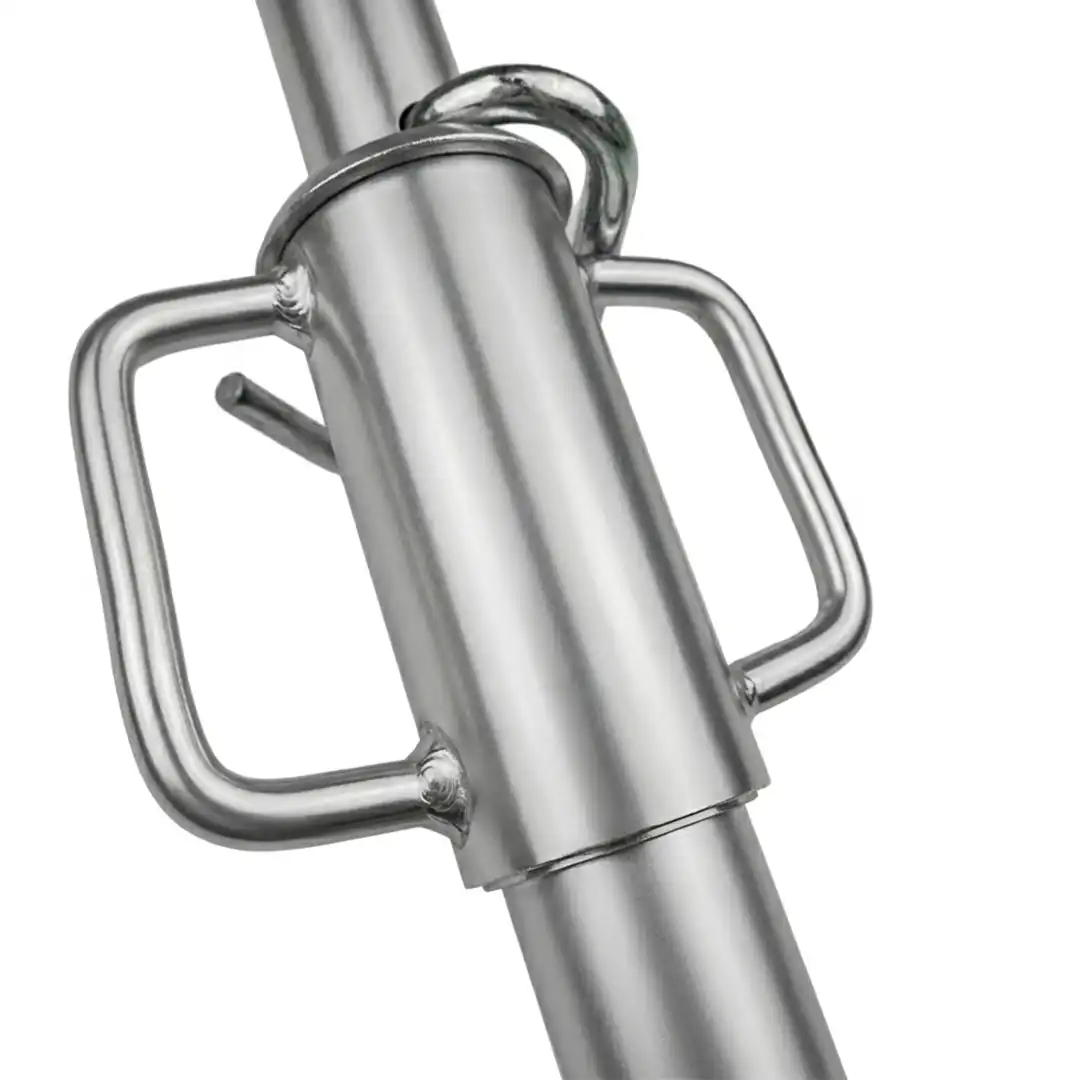

Pack of 50 – GALVANIZED SLAB PROPS 10kN – ITALIAN TYPE
This set of 50 galvanized, Italian-type slab props (10 kN capacity) is an economical, bulk package designed for construction companies, contractors, and equipment rental businesses.
It provides a complete set of props essential for the safe formwork of monolithic slabs and ribbed-slab systems (e.g., Teriva), as well as for supporting lintels and beams.
Constructed entirely from galvanized steel, these props offer uncompromising resistance to corrosion, precipitation, and the harsh conditions of a construction site, ensuring a long service life for the equipment.
Key Advantages Set
- Bulk package savings: ordering 50 units in a single delivery ensures equipment uniformity and guarantees that you won’t run out of props on the construction site during critical concrete-pouring stages.
- Optimal 10 kN load capacity: designed to support vertical loads in residential and single-family home construction.
- Durable anti-corrosion protection: a galvanized coating shields the tubes, threads, and adjustment components from rust caused by moisture and construction mortars.
- Ergonomic and lightweight: the well-considered weight allows for efficient transport and assembly of the props by a single person.
- Smooth and rapid adjustment: the internal thread enables precise height setting with millimeter accuracy.
- System compatibility: the base plates feature mounting holes compatible with formwork heads and tripods. stabilizing elements.
Applications:
- formwork for reinforced concrete slabs (monolithic, ribbed, Teriva, Filigran systems),
- supporting lintels, beams, girders, and columns,
- temporary structural support during modernization and renovation work,
- versatile use in residential and commercial construction.
Installation and Safety
- Surface preparation: place the base of the prop on a firm, ...on a load-bearing, level surface. If placing on soil, use stable wooden base supports.
- Extending the tube: pull the inner tube out to the desired height and secure it by inserting the locking pin (G-PIN) into the nearest available hole.
- Final tightening: rotate the adjustment nut until the support is firmly pressed against the element being held.
- Verification: before pouring the concrete mix, ensure that all supports are positioned vertically and are firmly tightened in place.
Frequently Asked Questions (FAQ)
1. Do galvanized props require any special maintenance?
Thanks to their galvanized coating, the steel is permanently protected against corrosion. It is only recommended to regularly clean the thread of any concrete splashes after use; this ensures that the nut can be turned smoothly during future construction projects.
2. Are these props compatible with standard heads and tripods?
Yes, the design of the tubes and base plates of these Italian-style props is compatible with commonly used formwork accessories, such as stabilizing tripods and cross or crown heads.
