SET OF WHEELS WITH SUPPORTS FOR WARSAW SCAFFOLDING

The wheels are used to convert the scaffolding into a mobile structure. Thanks to them, you do not have to dismantle and reassemble the scaffolding if you need to move it.

Scaffolding wheels have a special foot brake. This makes it easy to lock the scaffolding in place.

Scaffolding on wheels has a wide range of applications. Mounting wheels allows you to quickly move the scaffolding. They are useful for work performed outside as well as inside the building.

WHEEL SPECIFICATIONS:

• Load capacity per wheel: 200 kg

• Mounting tube diameter: 16 mm

• Base dimensions: 10x13.3 cm

• Brake dimensions: 4x5.6 cm

• Wheel holder: 11.6 cm

• Mounting bolt spacing: 10.5 cm x 8 cm

TECHNICAL DATA OF THE BASE:

• Shank length: 10 cm

• Hole: 42.5 mm (external), 37.5 mm (internal)

• Load capacity: 300 kg

• Hole spacing: 80x107 mm

• Mounting screw to prevent the frame from falling out

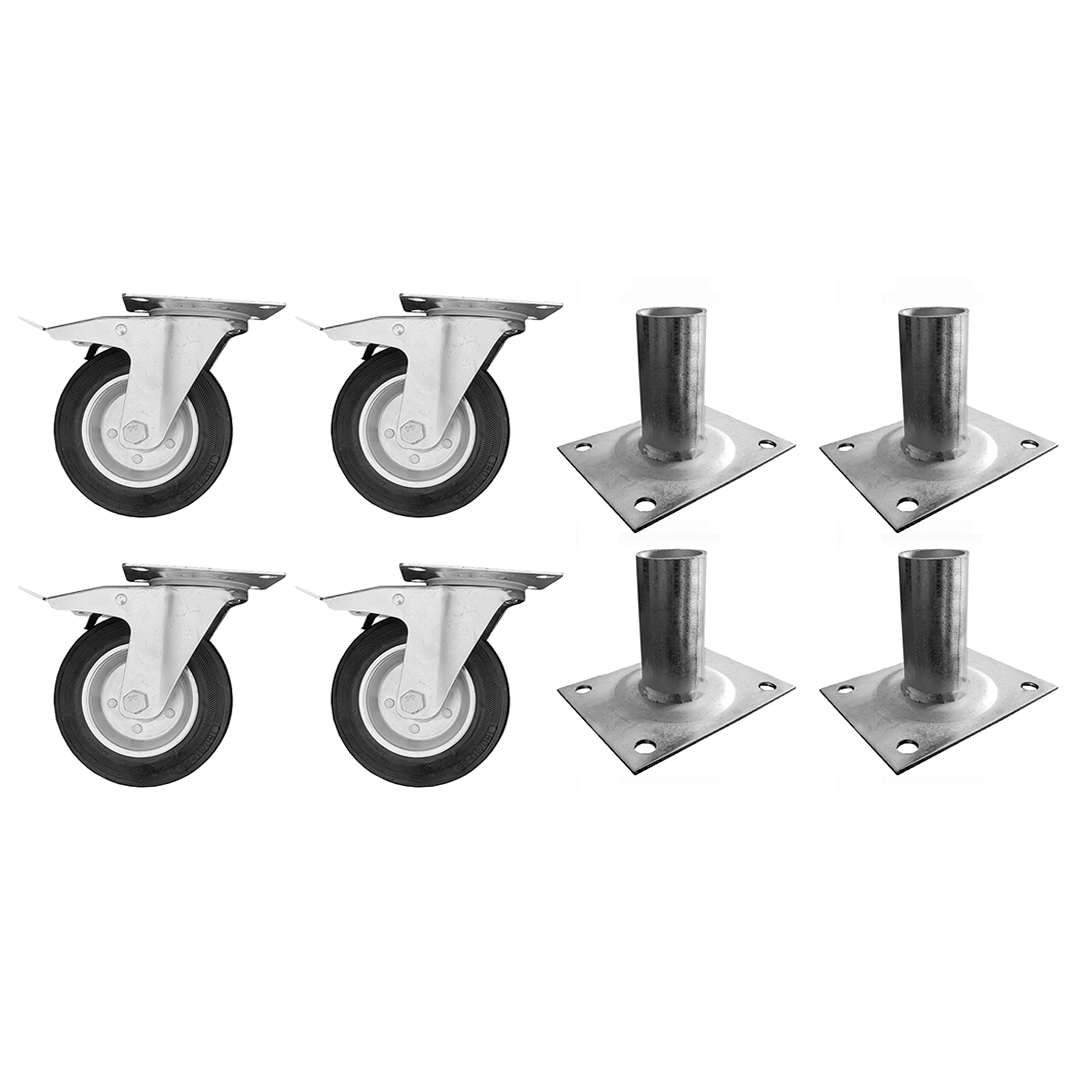

The set includes

• Wheel with brake FI 160: 4 pcs.

• Warsaw scaffolding base: 4 pcs.
